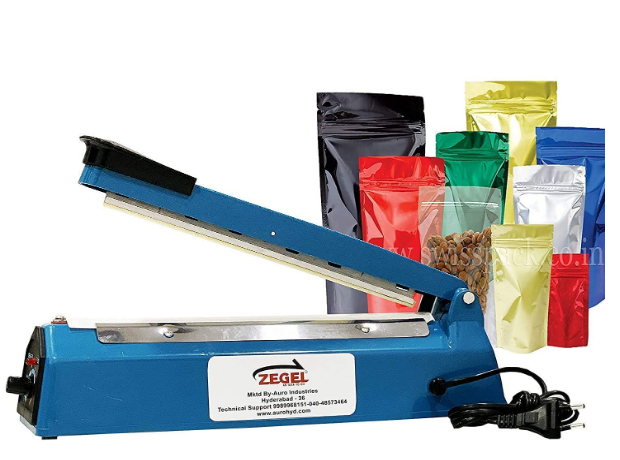

Impulse Heat Sealer Thermal Sealing Plastic Machine PFS-400
Product Details
Make and Export Impulse Heat Sealer 16 Inch / 400 mm / 40 cm Width Hand Thermal Sealing Plastic Bag Machine PFS-400 In Factory From China.Impulse Heat Sealer Hand Plastic ABS Body PFS-Series Thermal Sealing Plastic Bag Machine is a great addition to our sterilization family.A built in adjustable timer and 2mm,3mm,5mm,8mm heating element ensures a perfect seal every time.Customize your pouch size and save time.
Impulse Heat Sealer Hand Plastic ABS Body PFS-Series Thermal Sealing Plastic Bag Machine is Perfect for household, warehouse, supermarket to pack candy, stationery, drugs and more.A great sealer for PE/PP films/bags, bubble wraps etc. of different thickness.An adjustable timer with 8 levels meets various packaging needs.Manual heat sealer with optimum sealing effects
Provides needed heat to melt the bag material so as to seal.Compact and labor-saving design makes it easy to handle. Replaceable built-in fuse with long sealing performance.Tough and durable ABS case in light blue finish.Auto control of heating with a LED indicator..In principle, the impulse sealing method offers the widest range of possibilities which can be varied to achieve the desired results.However, this may not be necessary for all applications, or not possible due to high machine speeds..In most cases the heating elements have a straight-lined design. But also even contours may be possible (form sealing bands).The resistance along the contour is constant to achieve the necessary heating..Adherence to the sealing parameters is decisive for the final result. While this is relatively easy as regards pressure and time, keeping the necessary temperature of the heating element poses a problem. When using low-cost installations or working at low speeds a time control is still used today. A defined flow of current is passed through the heating element for a set time. However, the actual temperature is not measured. Even so, this method provides satisfactory results.
Colol :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2.0s
Can Make OEM Products
Impulse Heat Sealer 16 Inch / 400 mm / 40 cm Width Hand Thermal Sealing Plastic Bag Machine Features:
Colol :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2.0s
Can Make OEM Products
Precision electronic control circuit.
Portable and compact size.
Plastic ABS Body
Impulse sealing for power-saving.
Long sealing element.
Adjustable timer creates perfect seals for varying bag thickness.
Labor-saving design with long handle.
Low power consumption.
Impulse Heat Seal is as versatile as it is strong and can seal a variety of materials including PVC, Polythene and polypropylene
An impulse sealer works by sending a short burst of electricity through a wire, which turns the electrical energy into heat energy. That heat then flows into the sealer's jaw, which is pressed against the sides of the bag to melt them together. The packaging is then sealed permanently, until broken.

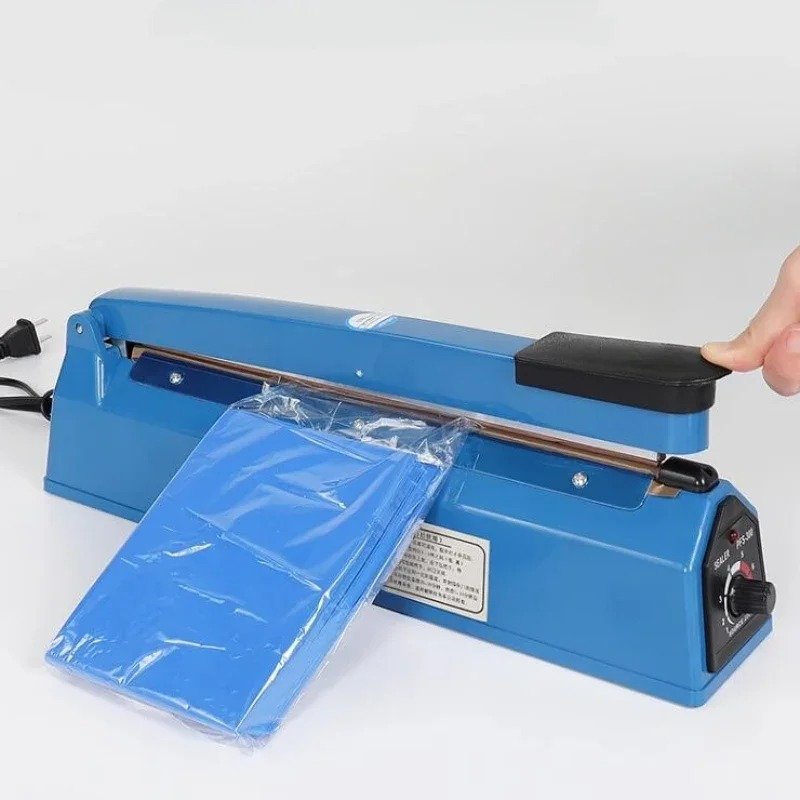

Impulse sealers can be divided into two categories: manual and automatic sealers. Manual sealers are operated by a human user, who must physically place a bag in the jaws of the sealer and push them closed, then remove the sealed bag. These are generally the size of a stapler and sit on a table or desktop for use.
CE,RoHS and CCC Certified.
An impulse sealer works by sending a short burst of electricity through a wire, which turns the electrical energy into heat energy. That heat then flows into the sealer's jaw, which is pressed against the sides of the bag to melt them together. The packaging is then sealed permanently, until broken.
Impulse sealers can be divided into two categories: manual and automatic sealers. Manual sealers are operated by a human user, who must physically place a bag in the jaws of the sealer and push them closed, then remove the sealed bag. These are generally the size of a stapler and sit on a table or desktop for use.
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
Impulse Heat Sealer 16 Inch / 400 mm / 40 cm Width Hand Thermal Sealing Plastic Bag Machine Specification:
Model: PFS-400
Colol :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
An impulse sealer is a tool used to seal all different types of packaging, from polyethylene and polypropylene bags to thermoplastic packages. They are sometimes also known as heat sealers.
Impulse Heat Sealer 16 Inch / 400 mm / 40 cm Width Hand Thermal Sealing Plastic Bag Machine Package List:
1 X PFS-400 Impulse Heat Sealer
2 X Spare Heat-resistant Strips
2 X Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Heat Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390 mm
G.W/CTN:26.5 Kg
Model: PFS-400
Colol :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
An impulse sealer is a tool used to seal all different types of packaging, from polyethylene and polypropylene bags to thermoplastic packages. They are sometimes also known as heat sealers.
Impulse Heat Sealer 16 Inch / 400 mm / 40 cm Width Hand Thermal Sealing Plastic Bag Machine Package List:
1 X PFS-400 Impulse Heat Sealer
2 X Spare Heat-resistant Strips
2 X Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Heat Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190 mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390 mm
G.W/CTN:26.5 Kg
HS CODE:8422303090
Impulse Heat Sealer Hand Plastic ABS Body PFS-Series Thermal Sealing Plastic Bag Machine Specification:
| Model | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length |
100mm (4 inch) |
150mm (6 inch) |
200mm (8 inch) |
250mm (10 inch) |
300mm (12 inch) |
400mm (16 inch) |
| Max sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Max sealing thickness | 0.6mm | 0.6mm | 0.6mm | 0.8mm | 0.8mm | 0.8mm |
| Adjustable heating time | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-1.5 S | 0.2-2 S |
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
