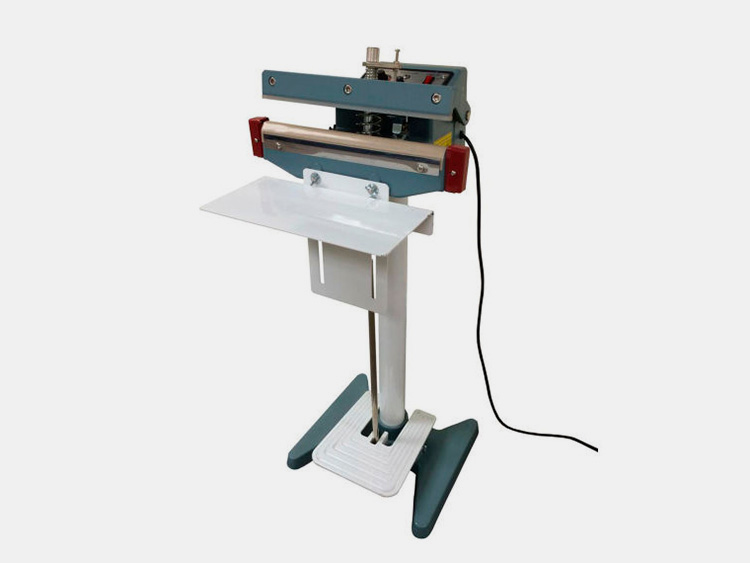

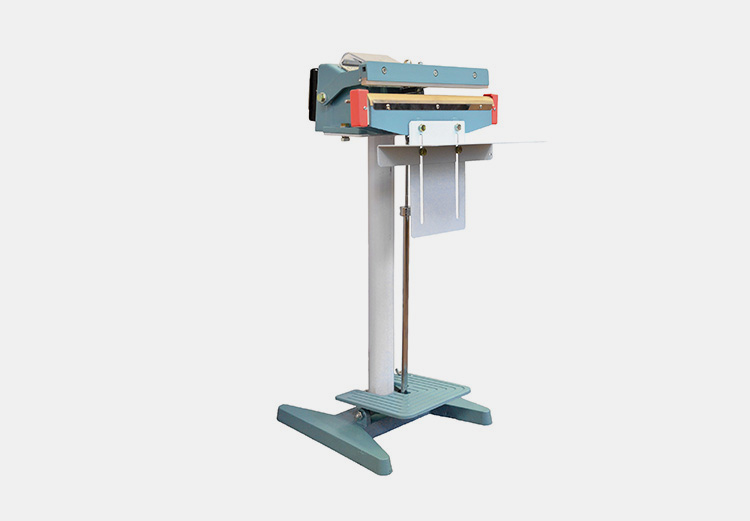

Foot Impulse Sealers Producing Plastic Bag Machines PFS-450
Product Details
Make and Export Foot Impulse Sealers 18 Inch / 450mm / 45cm Width Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines PFS-450 In Factory From China.Foot Impulse Sealers PFS-Series Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines is a versatile tool for sealing and producing all types of plastic bag films, featuring a convenient foot pedal mechanism for hands-free operation.Ideal for high-volume use in food factories and cosmetics manufacturers, this durable pedal sealing machine offers adjustable sealing time and temperature settings to accommodate various materials and bag sizes.With its reliable performance, the foot impulse sealer ensures a strong, professional seal that enhances product presentation and extends shelf life, making it an essential investment for any packaging operation.
This type of sealer uses an electric current to heat up a strip that runs along the bag or pouch sealing it shut with minimal time and effort. With its precision cutting capabilities, adjustable timer settings and self-contained operation, this versatile tool can make light work of your packaging requirements while saving money on packaging materials costs.
Foot operated impulse sealers are machines used to heat seal materials such as plastic and paper. They use an electrical impulse of current that is sent through a heating element to quickly generate enough heat to melt the material together, creating an airtight seal.Foot operated impulse sealers are typically used in industrial settings for bagging and packaging production runs. Also, these machines are used in a variety of industries, from food and beverage production to medical supplies.
Foot Impulse Sealers 18 Inch / 450mm / 45cm Width Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Features:
Maximum sealing length:18 Inch / 450mm / 45cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Maximum sealing length:18 Inch / 450mm / 45cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
Foot pedal – This operates the sealing process by activating an electric impulse that triggers the heating element contained in the sealer jaw.
Heating element – This is the part of the sealing process that actually melts or fuses the plastic material together, creating a seal.
Sealing jaw – The sealer jaw houses the heating element and contains two plates that clamp down onto the material when the foot pedal is activated, pressing them together to form a seal.
Timer – This helps to ensure that the correct amount of heat is applied to the material when sealing, preventing it from becoming too hot or burning. It also ensures a consistent seal every time.
Cooling system – Once the sealing process is complete, a small fan cools down the sealer jaw and the material for easy manipulation afterwards.
Foot rest – A footrest is attached to the foot operated impulse sealer so that it can be used with both feet, ensuring a steady and secure seal every time.
Heat control knob – The heat control knob allows you to adjust the temperature of the heating element as needed for different materials and thicknesses.
Safety guard – A safety guard helps to prevent accidental contact with the hot surfaces of the foot operated impulse sealer while it is in operation.
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
Foot Impulse Sealers 18 Inch / 450mm / 45cm Width Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Specification:
Model:PFS-450
Maximum sealing length: 18 Inch / 450mm / 45cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1250 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550 X 540 X 880mm
Net Weight:21 Kg
Material: Die-cast Aluminium Alloy

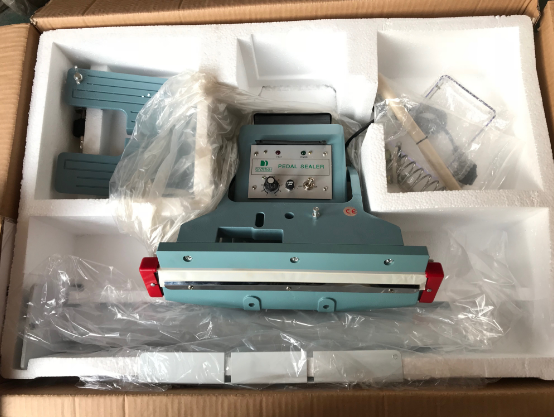

Foot Impulse Sealers 18 Inch / 450mm / 45cm Width Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Package List:
1 X PFS-450 Foot Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Sheets
Model:PFS-450
Maximum sealing length: 18 Inch / 450mm / 45cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1250 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 550 X 540 X 880mm
Net Weight:21 Kg
Material: Die-cast Aluminium Alloy
A powered tool called an impulse sealer is used to seal various kinds of plastic packaging, most frequently poly bags containing collections of parts or components. It heats up a metal wire with an electrical impulse, melting one layer of plastic into the next.
Foot Impulse Sealers 18 Inch / 450mm / 45cm Width Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Package List:
1 X PFS-450 Foot Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Sheets
1 X Instruction Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:21 Kg
HS CODE:8422303090
Foot Impulse Sealers PFS-Series Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:21 Kg
HS CODE:8422303090
Foot Impulse Sealers PFS-Series Heavy Duty Foot Operated Producing Plastic Bag Heat Sealing Machines Specification:
| Model | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inches) |
450mm (18 Inches) |
650mm (26 Inches) |
800mm (32 Inches) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
