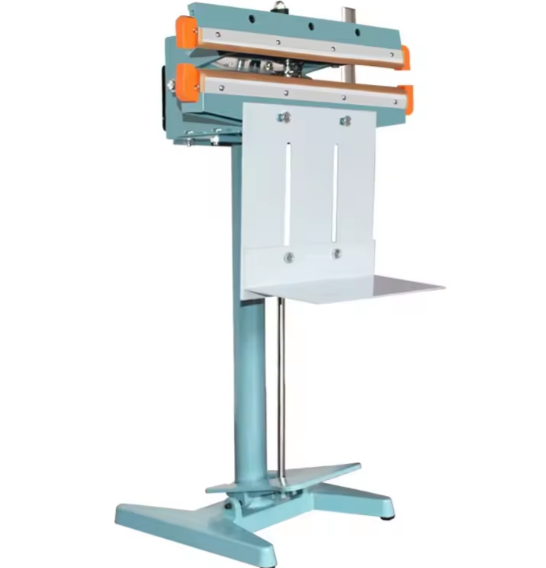

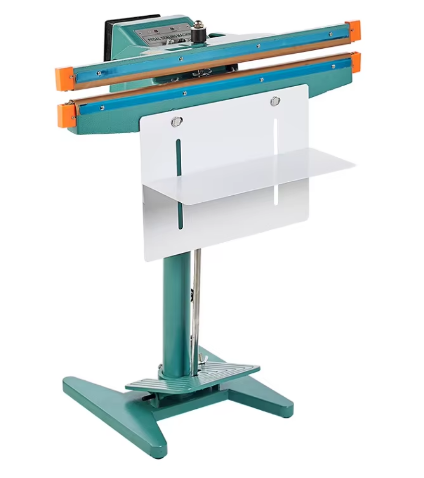

Foot Pedal Operated Impulse Sealer Seal Bag Machine FSP-650D
Product Details
Make and Wholesale Foot Pedal Operated Impulse Sealer 26 Inches / 650mm / 65cm Width Double Heat Seal Plastic Bag Machine FSP-650D In Factory From China.Foot Pedal Operated Impulse Sealer Foot Pedal PFS-Series Double Heat Seal Plastic Bag Machine offer the convenience of hands-free use, ideal for high-volume sealing jobs. With a foot pedal, your hands remain free to manage and position bags, enhancing efficiency and minimizing fatigue.These sealers are typically employed in large-scale operations where speed and accuracy are crucial.
Impulse heat sealers are popular for their efficiency and ease of use. These sealers work by applying heat for a very short duration, typically just a few seconds, to create a seal. Ideal for flexible packaging, impulse sealers are versatile and suitable for a variety of packaging materials.Commonly seen in factory packaging lines or sizable kitchens, foot pedal-operated heat sealers accommodate different materials and bag sizes.Their ergonomic design allows operators to work comfortably while maintaining a high production rate.
Maximum Bag Sealing Thickness:1mm X 2
Sealing Width 5mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Foot Pedal Operated Impulse Sealer 26 Inches / 650mm / 65cm Width Double Heat Seal Plastic Bag Machine Features:
Maximum Sealing Length:26 Inches / 650mm / 65cmMaximum Bag Sealing Thickness:1mm X 2
Sealing Width 5mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Ideal for sealing thicker materials including some tubes
Double sealing switch selector
Plug-in electronic timer for variable control
All metal construction
Heavy duty
No warm-up time
Sits on rectangular stand for stability
Our double impulse foot sealers are ideal for sealing thicker materials. Available in 12", 14",18", and 26" lengths with a 5mm seal, the foot sealers are capable of sealing materials up to 20mil in total thickness. Equipped with a single and double sealing selector switch provides flexibility of sealing various types of materials.
Depending on the thickness of the material, the user has the choice of one or two elements for top and bottom heating.
Depending on the thickness of the material, the user has the choice of one or two elements for top and bottom heating.
Sealers are equipped with a steel frame for added safety and stability. A height adjustable working plate is also included. The manufacturer's replacement kit includes two elements. A taller stand and tension rod is also available adding 10" in height. Working height is 30 1/4" but the extended standing tube provides a 42 1/2" working height.
Easy to Operate,Set the timer. Insert the bag between the two sealing bars and press down on the foot board. Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.
CE,RoHS and CCC Certified.
Foot Pedal Operated Impulse Sealer 26 Inches / 650mm / 65cm Width Double Heat Seal Plastic Bag Machine Specification:
Model: PFS-650D
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 5mm
Heating time: 0.2-2.5 s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions: 700 X 570 X 880mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Heat sealers operate by applying heat to the packaging material, causing it to soften and bond with another layer. The sealing process can vary depending on the type of heat sealer used, whether it’s an impulse sealer or a constant heat sealer. Understanding how each type functions can help optimize your sealing methods.
Foot Pedal Operated Impulse Sealer 26 Inches / 650mm / 65cm Width Double Heat Seal Plastic Bag Machine Package List:
1 X PFS-650D Foot Pedal Operated Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
Model: PFS-650D
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 5mm
Heating time: 0.2-2.5 s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1700 W
Welding time:Infinitely Adjustable
External Dimensions: 700 X 570 X 880mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Heat sealers operate by applying heat to the packaging material, causing it to soften and bond with another layer. The sealing process can vary depending on the type of heat sealer used, whether it’s an impulse sealer or a constant heat sealer. Understanding how each type functions can help optimize your sealing methods.
Foot Pedal Operated Impulse Sealer 26 Inches / 650mm / 65cm Width Double Heat Seal Plastic Bag Machine Package List:
1 X PFS-650D Foot Pedal Operated Impulse Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Pedal Operated Impulse Sealer Foot Pedal PFS-Series Double Heat Seal Plastic Bag Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Foot Pedal Operated Impulse Sealer Foot Pedal PFS-Series Double Heat Seal Plastic Bag Machine Specification:
| Model. | PFS-300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length |
12 Inch (300mm) |
14 Inch (350mm) |
18 Inch (450mm) |
26 Inch (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
