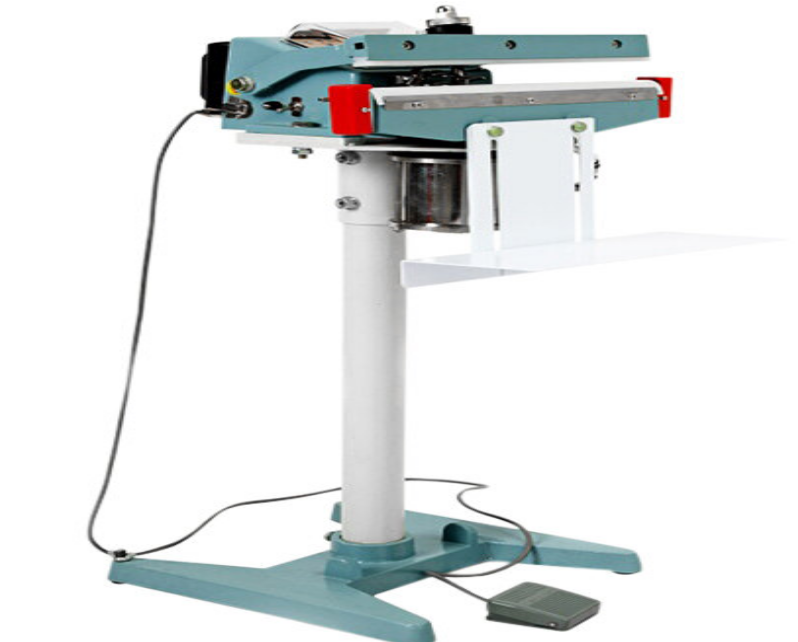

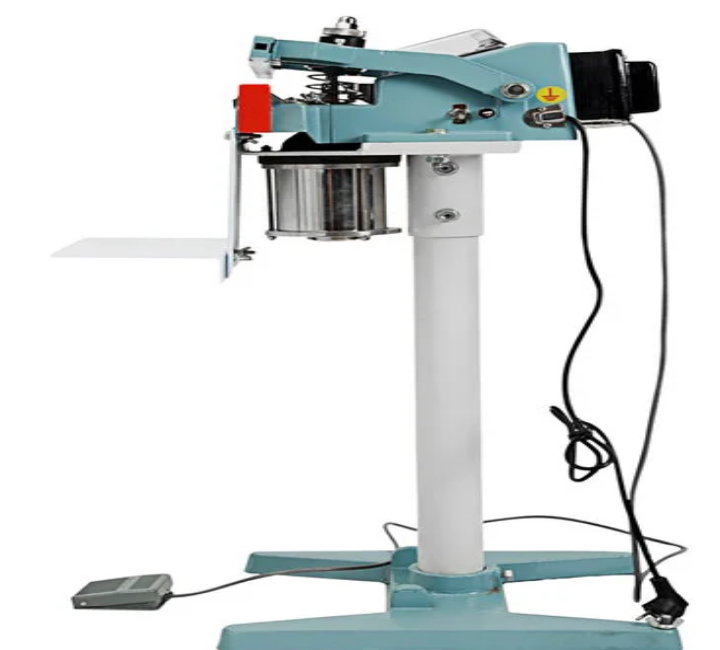

Foot Pedal Operated Bag Impulse Heat Sealer Machine PFS-800
Product Details
Make and Sale Foot Pedal Operated Plastic Bag Impulse Heat Sealer 32-Inches / 800mm / 80cm Width Sealing Machine PFS-800 From Factory In China.Foot Pedal Operated Plastic Bag Impulse Heat Sealer PFS-Series Foot Operated Sealing Machine is a great investment for locking in freshness and preventing staleness! Whether used for retail, produce, grocery stores, or industrial sealing, it can handle a large workload.Thanks to the manual foot pedal, this sealer is completely hands free, which increases the speed of sealing and packing.This style of operation makes this unit great for high volume packaging.Foot pedal-operated heat sealers offer the convenience of hands-free use, ideal for high-volume sealing jobs. With a foot pedal, your hands remain free to manage and position bags, enhancing efficiency and minimizing fatigue. These sealers are typically employed in large-scale operations where speed and accuracy are crucial.Commonly seen in factory packaging lines or sizable kitchens, foot pedal-operated heat sealers accommodate different materials and bag sizes. Their ergonomic design allows operators to work comfortably while maintaining a high production rate.Other sealing systems include an array of components and steps and require time to warm up prior to use.This impulse sealer requires no warm up; just plug it in, set the timer, or alternatively use the manual foot pedal, and start sealing as you please! An indicator light lets you know when a tight seal is ready. The 2mm,3mm,5mm,8mm or 10mm sealing width will give a standard seal for light to medium weighted contents. This unit requires a 110V or 220V electrical connection for operation.
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Foot Pedal Operated Plastic Bag Impulse Heat Sealer 32-Inches / 800mm / 80cm Width Sealing Machine Features:
Maximum Sealing Length: 32 Inches / 800mm / 80cmMaximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5 s
Can Make OEM Products
Easy operation to achieve sealing and cutting functions
Equipped with Precision electronic control circuit for automatically heating control
Sturdy metal case construction with anti-skid footpad to increase stability
Self-standing and compact design for less space occupying easy carry
Pure copper transformer for over temperature protection and overload protection
Strong power but low electricity consumption
Single sealing switch selector
Completely hands free operation speeds up sealing and packaging
32 Inches wide seal bar can withstand temps up to 356 degrees Fahrenheit
Adjustable time and light indicator lets you know when seal is ready
Ideal for retail, produce, grocery stores, and industrial sealing
Plug-in electronic timer for variable control
All metal construction
Heavy duty
No warm-up time
Sits on rectangular stand for stability
Widely used across various industries and materials
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
Customize: OEM and ODM available.
Foot Pedal Operated Plastic Bag Impulse Heat Sealer 32-Inches / 800mm / 80 cm Width Sealing Machine Specification:
Model:PFS-800
Maximum sealing length:32 Inches / 800mm / 80cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880
Net Weight:29 Kg
Foot Pedal Operated Plastic Bag Impulse Heat Sealer 32-Inches / 800mm / 80 cm Width Sealing Machine Package List:
1 X PFS-800 Foot Pedal Operated Plastic Bag Impulse Heat Sealer
2 X Heating Elements
2 X Teflon Tapes
Model:PFS-800
Maximum sealing length:32 Inches / 800mm / 80cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1800 W
Welding time: Infinitely Adjustable
External Dimensions (L X W X H) (mm): 855 X 570 X 880
Net Weight:29 Kg
Foot Pedal Operated Plastic Bag Impulse Heat Sealer is ideal for sealing thicker materials. Available in 14", 18", 26" and 32" lengths with a 2mm,3mm,5mm,8mm,10mm seal, the W-Series foot sealers are capable of sealing materials up to 20mil in total thickness. Equipped with a single and double sealing selector switch provides flexibility of sealing various types of materials. Depending on the thickness of the material, the user has the choice of one or two elements for top and bottom heating.
Sealers are equipped with a steel frame for added safety and stability. A height adjustable working plate is also included. The manufacturer's replacement kit includes two elements. A taller stand and tension rod is also available adding 10" in height. Working height is 30 1/4" but the extended standing tube provides a 42 1/2" working height.
Easy to Operate-Set the timer. Insert the bag between the two sealing bars and press down on the foot board. Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.
Foot Pedal Operated Plastic Bag Impulse Heat Sealer 32-Inches / 800mm / 80 cm Width Sealing Machine Package List:
1 X PFS-800 Foot Pedal Operated Plastic Bag Impulse Heat Sealer
2 X Heating Elements
2 X Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size: 800 X 530 X 250mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Pedal Operated Plastic Bag Impulse Heat Sealer PFS-Series Foot Operated Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size: 800 X 530 X 250mm
Net Weight:29 Kg
HS CODE:8422303090
Foot Pedal Operated Plastic Bag Impulse Heat Sealer PFS-Series Foot Operated Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inch) |
450mm (18 Inch) |
650mm (26 Inch) |
800mm (32 Inch) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
