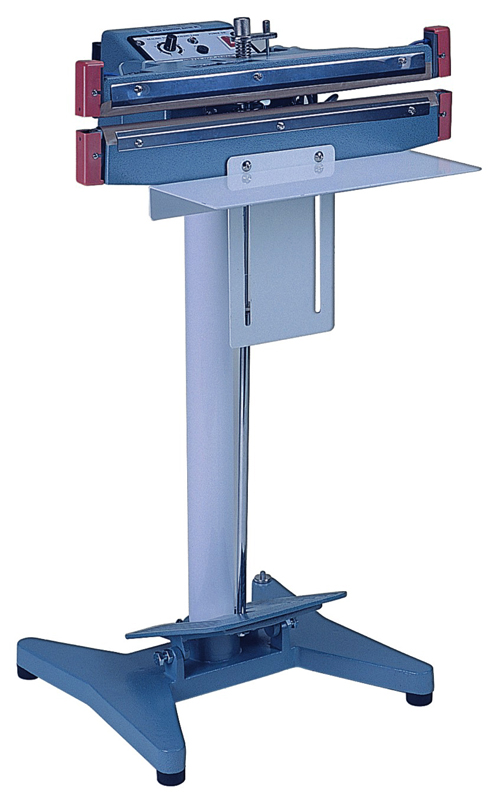

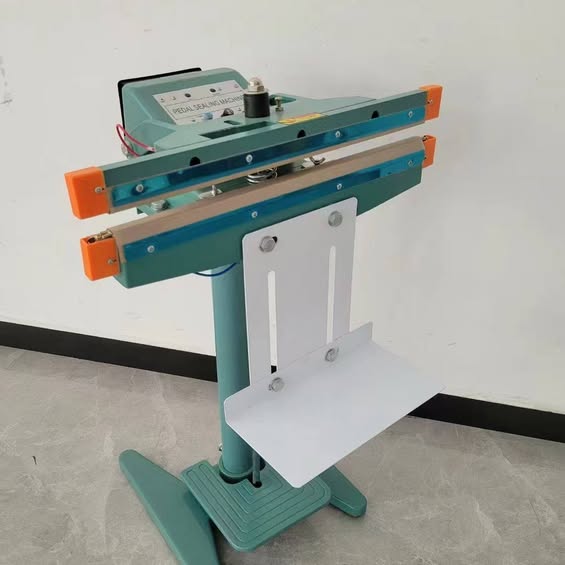

Plastic Bag Heat Sealer Pedal Impulse Seal Machine PFS-350D
Product Details
Make and Supply Plastic Bag Heat Sealer 14 Inch / 350mm / 35cm Width Pedal Impulse Sealing Machine PFS-350D In China From China. Plastic Bag Heat Sealer Double sided PFS-D-Series Pedal Impulse Sealing Machine Can seal baked goods, candies, meats, and other foods using our Black Aluminum Pedal Impulse Sealer.With a manual foot pedal, this heat sealer offers a quick and hands-free way to seal bags at your foodservice establishment.This pedal impulse sealer features adjustable heating levels, allowing you to set the proper heating level for bags to ensure an airtight seal.The light indicator of this heat sealing machine will turn on when it's sealing a bag and turn off once the bag is sealed to inform you that the sealing process is complete.Featuring an adjustable table, this black heat sealer machine allows employees to comfortably seal products and offers a secure area to place bags that have been sealed.Crafted from premium aluminum, this pedal heat sealing machine is naturally durable and built to endure high-volume use.The seal bar of this food-safe heat impulse sealer measures 14 inches wide, providing you with an effortless way to seal different sized bags.
Maximum bag sealing thickness:1mm X 2
Sealing Width 10mm
Heat Time: 0.2 -2.5s
Plastic Bag Heat Sealer 14 Inch / 350 mm / 35 cm Width Pedal Impulse Sealing Machine Features:
Maximum sealing length: 350mm / 14 Inches / 35cmMaximum bag sealing thickness:1mm X 2
Sealing Width 10mm
Heat Time: 0.2 -2.5s
Pedal design streamlines your sealing process
Timer knob adjusts the heating time for bags with varying thickness
Indicator light turns off once the bag has finished sealing
Unplug this product from the power source before cleaning and/or changing any parts.
Do not rest anything on the power cord.Do not place the machine where the power cord may be stepped on or pulled.
Always keep out of reach of children and pets.
This sealer should only be in use with an operator in attendance.
Never insert clothing, hand, or fingers between the sealing jaws of sealers or into the feed opening of continuous sealers.
Never touch the heating elements with bare hands while the sealer is plugged into a power source, in operation, or just finished operation.It is HOT.
Be sure to check for worn parts before starting operation.
Do not operate with a damaged power cord or plug.
Always keep the unit clean.Do not use water.
Silicone spray may be used to clean the unit.
Be sure the unit is unplugged from the power source before cleaning.
Silicone spray may be used to clean the unit.
Be sure the unit is unplugged from the power source before cleaning.
When changing the blade (for sealer with cutter), be careful of the sharp edge.
When changing the Teflon adhesive, be sure that the entire surface under the heating element is covered with Teflon adhesive. Bend down the excess Teflon adhesive on both ends.
This will prevent the heating element from breaking and the machine from grounding.
This will prevent the heating element from breaking and the machine from grounding.
When replacing a fuse, be sure the exact voltage and ampere is used.
When replacing any parts, be sure to mark down the exact locations of the connections, and the orders of the different pieces.
The machine has got CE,RoHS and CCC certificate.
The machine has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Plastic Bag Heat Sealer 14 Inch / 350mm / 35cm Width Pedal Impulse Sealing Machine Specification:
Model:PFS-350D
Maximum sealing length: 350mm / 14 Inches / 35cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 10mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
The heat seal is strong and secure, which helps protect against tampering or accidental openings. Plus, using an impulse sealer can help save time as it makes quick, consistent seals as opposed to using manual or adhesive packaging materials. Impulse sealers are highly versatile and can be used for a wide range of materials, such as polyethylene and polypropylene. These sealers are easy to use, making them a great choice for businesses that are shipping items in bulk.
Plastic Bag Heat Sealer 14 Inch / 350mm / 35cm Width Pedal Impulse Sealing Machine Package List:
1 X PFS-350D Pedal Impulse Sealing Machine
2 X Extra heating Wires
2 X Extra Teflon Clothes
Model:PFS-350D
Maximum sealing length: 350mm / 14 Inches / 35cm
Maximum bag sealing thickness: 1mm X 2
Sealing Width 10mm
Heating time: 0.2-2.5s
Voltage:AC220V50HZ or AC110V/60HZ
Pulse power:1300 W
Welding time:Infinitely Adjustable
External Dimensions (LXWXH) (mm):450X540X880mm
Net Weight:19 Kg
Material:Die-cast Aluminium Alloy
The heat seal is strong and secure, which helps protect against tampering or accidental openings. Plus, using an impulse sealer can help save time as it makes quick, consistent seals as opposed to using manual or adhesive packaging materials. Impulse sealers are highly versatile and can be used for a wide range of materials, such as polyethylene and polypropylene. These sealers are easy to use, making them a great choice for businesses that are shipping items in bulk.
Plastic Bag Heat Sealer 14 Inch / 350mm / 35cm Width Pedal Impulse Sealing Machine Package List:
1 X PFS-350D Pedal Impulse Sealing Machine
2 X Extra heating Wires
2 X Extra Teflon Clothes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:19Kg
Position the pedestal on the floor standing upright.
Mount the complete sealer assembly to the top of the pedestal and attach it with four screws.
Position spring under the sealer’s upper level. The pull-rod goes through the spring and is fastened to the upper level.
With foot pedal metal rod in hand, gently push down upper jaw to meet with the lower jaw. While jaws are compressed, reach under the unit and hook the metal foot pedal rod into the bottom of the spring bar where the 1/2″ hole is exposed.
With jaws still compressed, lift up the foot pedal to 45˚ angle and slide the metal foot pedal rod into one of two pre-molded slots. This will create tension on the foot pedal and cause the pedal to stand upright at 45˚.
The sealer is now ready to be used.
Insert the Power Cord into the correct receptacle (110V or 220V).
Turn the power switch ON.
Set the timer knob to the lowest setting. Always start with a low setting and increase gradually. Thicker bags need a higher setting.
Place the end of the bag under the sealing arm and press the pedal down gently, but firmly.
Hold for 2-3 seconds. The red light will go out when the sealing time is complete.
a. If the seal is broken or damaged, decrease the sealing time.
b. If the seal is not fully welded, increase the sealing time.
c. If the sealing material sticks to the sealing pad, decrease the congealing time.
d. If the width of the seal is not perfect or does not match the size of the element, increase the congealing time.
(Congealing time is necessary for sealing.)
When the red light goes out, keep pressing the pedal for 2-3 seconds.
HS CODE:8422303090
Plastic Bag Heat Sealer Double sided PFS-D-Series Pedal Impulse Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:19Kg
Plastic Bag Heat Sealer Double sided PFS-D-Series Pedal Impulse Sealing Machine Assembly:
Position the pedestal on the floor standing upright.
Mount the complete sealer assembly to the top of the pedestal and attach it with four screws.
Position spring under the sealer’s upper level. The pull-rod goes through the spring and is fastened to the upper level.
With foot pedal metal rod in hand, gently push down upper jaw to meet with the lower jaw. While jaws are compressed, reach under the unit and hook the metal foot pedal rod into the bottom of the spring bar where the 1/2″ hole is exposed.
With jaws still compressed, lift up the foot pedal to 45˚ angle and slide the metal foot pedal rod into one of two pre-molded slots. This will create tension on the foot pedal and cause the pedal to stand upright at 45˚.
The sealer is now ready to be used.
Plastic Bag Heat Sealer Double sided PFS-D-Series Pedal Impulse Sealing Machine Note:
Before operating, check the heater (heating element), Teflon cover, Teflon adhesive, and the sealing pad (silicon rubber).
Insert the Power Cord into the correct receptacle (110V or 220V).
Turn the power switch ON.
Set the timer knob to the lowest setting. Always start with a low setting and increase gradually. Thicker bags need a higher setting.
Place the end of the bag under the sealing arm and press the pedal down gently, but firmly.
Hold for 2-3 seconds. The red light will go out when the sealing time is complete.
a. If the seal is broken or damaged, decrease the sealing time.
b. If the seal is not fully welded, increase the sealing time.
c. If the sealing material sticks to the sealing pad, decrease the congealing time.
d. If the width of the seal is not perfect or does not match the size of the element, increase the congealing time.
(Congealing time is necessary for sealing.)
When the red light goes out, keep pressing the pedal for 2-3 seconds.
Plastic Bag Heat Sealer Double sided PFS-D-Series Pedal Impulse Sealing Machine Specification:
| Model. | PFS-300D | PFS-350D | PFS-450D | PFS-650D |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 900 | 1300 | 1400 | 1700 |
| Max.Sealing Length |
12 Inch (300mm) |
14 Inch (350mm) |
18 Inch (450mm) |
26 Inch (650mm) |
| Sealing Width | 5mm / 8mm / 10mm | |||
| Max.sealing thickness | 1mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 350X540X880 | 450X540X880 | 550X540X880 | 700X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 17 | 19 | 21 | 24 |
