Plastic Heat Sealer Hand Impulse Bag Sealing Machine PFS-100
Product Details
Sale Plastic Heat Sealer 100mm / 4 inches / 10cm Width Hand Impulse Bag Sealing Machine PFS-100 From Factory In China.Plastic Heat Sealer Plastic ABS Shell PFS-Series Hand Impulse Bag Sealing Machine Makes excellent air & water tight seals on materials like P.P., L.D., H.M., H.D. and all similar heat sealable materials.These Pouch sealing Machines are manual and Easy to Operate. Simply place a bag between the sealing bars, press down and release. These Impulse Bag Sealing Machine are of metal construction and of industrial quality and built to last.
Impulse sealers come with different widths that seal different thicknesses of plastic like 2mm, 3mm, 5mm , 8mm, 10mm and Double sealing. A wider seals means a better seal so if seal integrity is very important to you, choose a sealing machine with at least a 5mm wide seal. A good example would be a food application where you need an air tight or liquid tight seal.
The heating element comes in round or flat. In most Plastic Bag Sealers, the round and flat wire can be interchanged. The flat wires are used to 'only seal' plastic bags or tubing. The round wire is mainly used for 'cut and seal' applications such as shrink film, shrink bags and poly tubing.Different types of Manual impulse sealer include tabletop models, foot pedal models, Continuous sealers and Pneumatic models.Most impulse sealing machinery are equipped with plug-in electronic timer and built in micro-switch. No warm-up time is needed in these machines.Power is used only when the sealing bar activates the micro-switch. The variable timer let you seal various types and thickness of plastic films.A signal light and beeping sound come on to let the operator know the heat cycle is completed and the seal is done.
You want to set the timer to the lowest possible number that gives you a good seal. That will maximize the life of the heating element and the PTFE Non Stick cover Impulse sealer kits come in many different sizes, from small portable 4-inch models, to large 48-inch tabletop models. The size you want will depend on what you want to seal. It is important to have some extra room on the ends, however, so if you plan on sealing 12-inch wide bags, you will want an impulse sealer that is wider than 4 inches. A little extra width also gives you the option to seal both smaller and larger items.
Width for seal: 2mm
Max thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Plastic Heat Sealer 100mm / 4 inches / 10cm Width Hand Impulse Bag Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Plastic Heat Sealer 100mm / 4 inches / 10cm Width Hand Impulse Bag Sealing Machine Features:
Width for seal: 2mm
Max thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Temperature controllable-8 levels can be adjusted, the sealing level can be selected according to the size and thickness of the bag.
Heat Dissipation Base-The bottom of the heat dissipation hollow base design, effective ventilation and heat dissipation, prolong the service life.
The Impulse Heat Sealer is suited for various plastic films package, like foodstuff, candy, medicine, electric elements, etc.
It is mostly used in factories, shops and service industries.
The sealer is most ideal for Polyethylene, Polyurethane, Polyvinyl chloride, Polyplex, bubble packs, padded mailers, foils, and other thermoplastic materials.
For PE/PP Bags: The sealer can seal Polypropylene (PP) and Polyethylene (PE) type of bags. They are mostly used for packaging.
Seal plastic tubing or bags in a single simple step.
Gently apply pressure to seal poly bags or poly tubing.
The Impulse Heat Sealer is suited for various plastic films package, like foodstuff, candy, medicine, electric elements, etc. It is mostly used in factories, shops and service industries. The sealer is most ideal for Polyethylene, Polyurethane, Poly vinyl chloride, Poly flex, bubble packs, padded mailers, foils, and other thermoplastic materials. For PE/PP Bags The sealer can seal Polypropylene (PP) and Polyethylene (PE) type of bags. They are mostly used for packaging. Impulse Sealing for Power-Saving This sealer doesn’t take up too much power as it will automatically turn the heater off when it becomes too hot. No power is consumed unless the sealer is being used. It has a timer in order to prevent over melt and save power.
The heat sealer has got CE,RoHS and CCC certificate.
The heat sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Plastic Heat Sealer 100mm / 4 inches / 10cm Width Hand Impulse Bag Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Heat Sealers are ideal for sealing our mini-sample sachets and pouches.
They are designed for the continuous sealing of thermoplastic films such as polyethylene and polypropylene.
They operate on the impulse sealing method, controlled by a plug-in transistorized circuit board. They work by delivering an instantaneous high current impulse to a heater ribbon on the device surface.
This is a small unit, with a miximum seal length of 4", perfect for sealing our sample pouches. Unlike many sealers on the market, our sealer has a generous 5mm seal width (about 3/8") which looks much nicer on sample pouches.

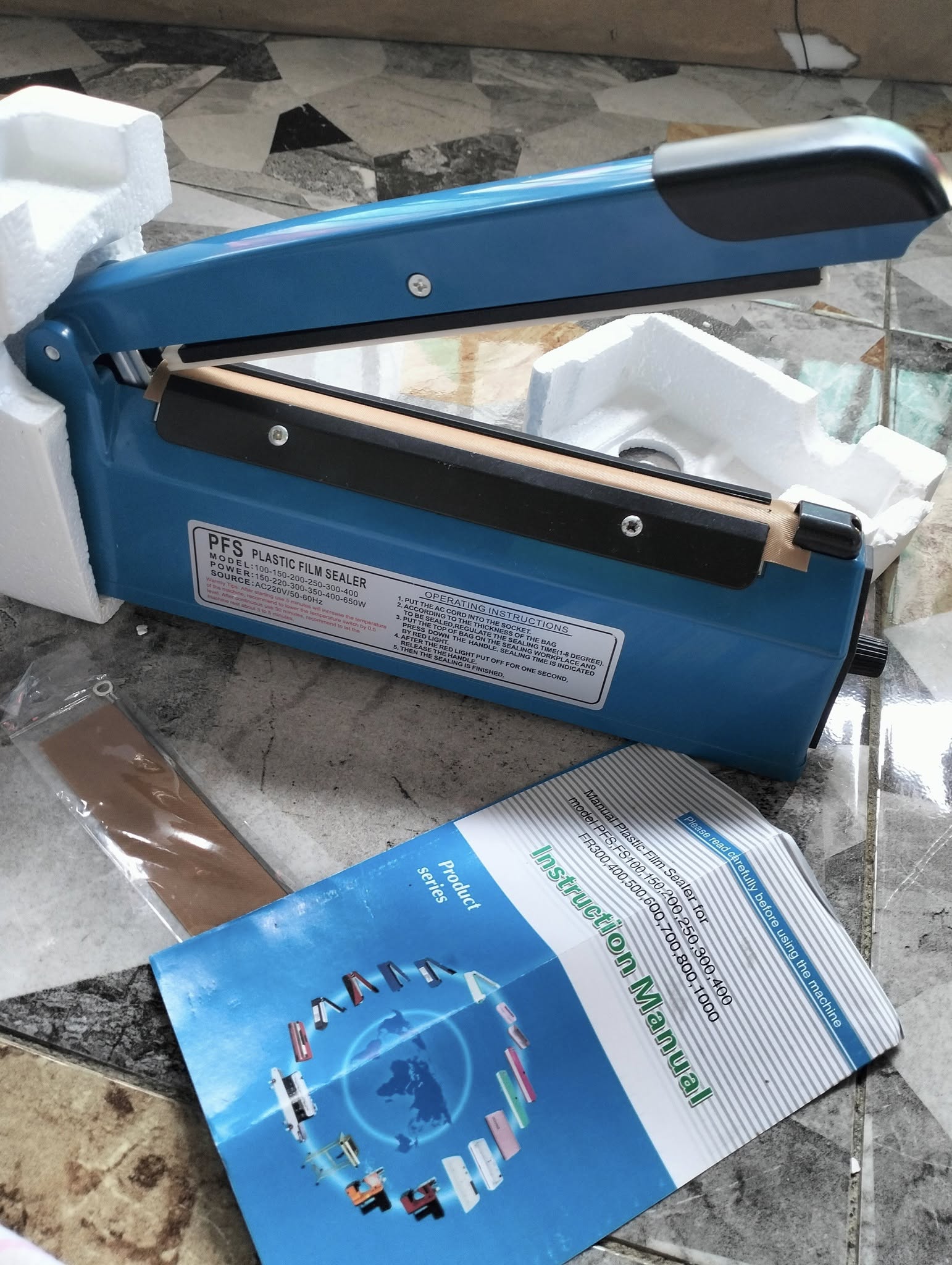

Plastic Heat Sealer 100mm / 4 inches / 10cm Width Hand Impulse Bag Sealing Machine Package list:
1 X PFS-100 Plastic Heat Sealer
2 X Electric Heating Wires
2 X Durable High Temperature Clothes
1 X English User Manual
PFS-100 Plastic Heat Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245 X 95 X 170mm
20 PCS/CTN
Carton Size:490 X 255 X 640mm
G.W/CTN:23Kg
HS CODE:8422309090
Plastic Heat Sealer Plastic ABS Shell PFS-Series Hand Impulse Bag Sealing Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Max sealing length |
100mm 4 Inches |
150mm 6 Inches |
200mm 8 Inches |
250mm 10 Inches |
300mm 12 Inches |
400mm 16 Inches |
| Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
| Sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
| Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
