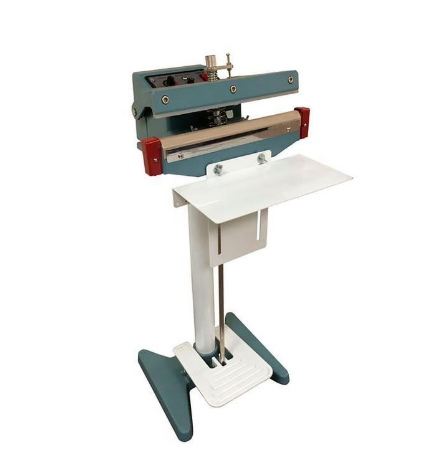

Impulse Foot Sealer Single Side Heat Sealing Machine PFS-350
Product Details
Supply Impulse Foot Sealer 14 Inches / 350mm / 35cm Width Foot Operated Single Sided Heating Sealing Machine PFS-350 In Factory From China.Impulse Foot Sealer Foot Pedal PFS-Series Foot Operated Single Sided Heating Sealing Machine are ideal for high volume poly bag and thermoplastic sealing. Capable of sealing 15-20 bags per minute, these sealers allow for quick and accurate sealing with both hands free.They can seal materials up to 32” wide and 10 mil total thickness, and include an adjustable worktable and foot control. With all-metal construction, no warm-up time, and a solid base for stability, they are easy to operate.
The impulse foot sealer is unique, because the actual sealing pressure is now strong, consistent and controllable.Helpful in sealing application where time and pressure need to be regulated. These unique sealers are quieter in that the clanging noise found in most other automatic sealers is reduced.Impulse Foot Sealer is specially manufactured to increase sealing production. These Impulse Foot Sealers are equipped with a foot pedal activator, so the user's hands are free to feed the machine and it comes complete with a pedestal, stand, adjustable worktable and adjustable foot pedal. This 14 inch impulse foot sealer has a 8mm sealing width that can seal up to 10 mil thickness.
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s
Impulse Foot Sealer 14 Inches / 350mm / 35cm Width Foot Operated Single Sided Heating Sealing Machine Features:
Maximum Sealing Length:14 Inches / 350mm / 35cmMaximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s
Easy to use and convenient designs
Ideal solution for a variety of uses
A trusted and reliable brand in sealing equipment
Capable of sealing 15-20 bags per minute for efficient operation
Hands-free operation allows for quicker and more accurate sealing
No warm-up time necessary for immediate use
Ideal for high volume sealing
Plug-in electronic time for variable control
All metal construction
No warm-up time
Sits on rectangular base for stability
Standing Operation
The Impulse Foot sealer has got CE,RoHS and CCC certificate.
The Impulse Foot sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Impulse Foot Sealer 14 Inches / 350mm / 35cm Width Foot Operated Single Sided Heating Sealing Machine Specification:
Model: PFS-350
Maximum Sealing Length:14 Inches / 350 mm / 35 cm
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg
Material: Die-cast Aluminium Alloy
Impulse Foot Sealer 14 Inches / 350mm / 35cm Width Foot Operated Single Sided Heating Sealing Machine Package List:
1 X PFS-350 Impulse Foot Sealer
2 X Replacement Heating Elements
Model: PFS-350
Maximum Sealing Length:14 Inches / 350 mm / 35 cm
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Film thickness: 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg
Material: Die-cast Aluminium Alloy

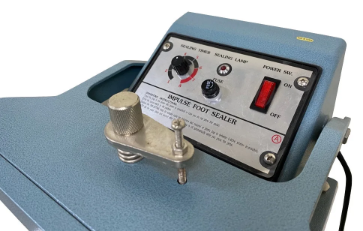

The machines are also equipped with a plug-in timer.
The timer controls the sealing time needed for different materials.
Once the timer is set, it will give a consistently flat seal.
When the seal is done, the signal light on the timer will turn off.

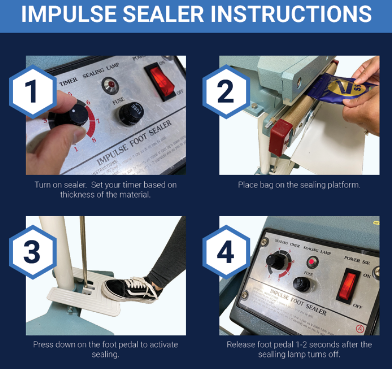

The sealers include a 26" pedestal, a 2" base, an adjustable worktable and an adjustable foot control. Work table measures 12" x 6-1/2" and can adjust from 3-1/2" - 9" from the sealing base. Insert the bag between the two sealing bars and press down on the foot board. Hold down the foot board for an additional 2-3 seconds after the timer light goes off to set the seal.
Impulse Foot Sealer 14 Inches / 350mm / 35cm Width Foot Operated Single Sided Heating Sealing Machine Package List:
1 X PFS-350 Impulse Foot Sealer
2 X Replacement Heating Elements
2 X Replacement Teflon Tapes
1 X English User Manual
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Impulse Foot Sealer Foot Pedal PFS-Series Foot Operated Single Sided Heating Sealing Machine Specification:
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Impulse Foot Sealer Foot Pedal PFS-Series Foot Operated Single Sided Heating Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inch) |
450mm (18 Inch) |
650mm (26 Inch) |
800mm (32 Inch) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
