Product Info

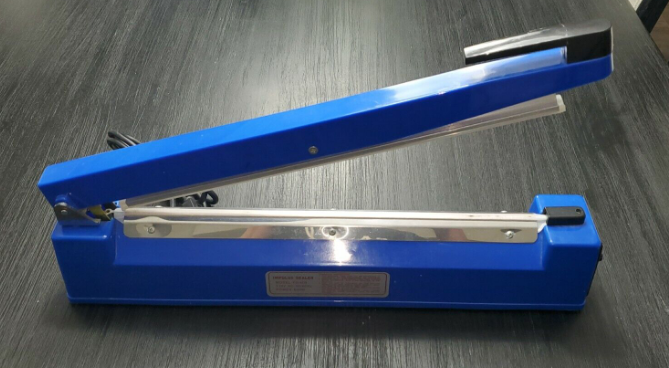

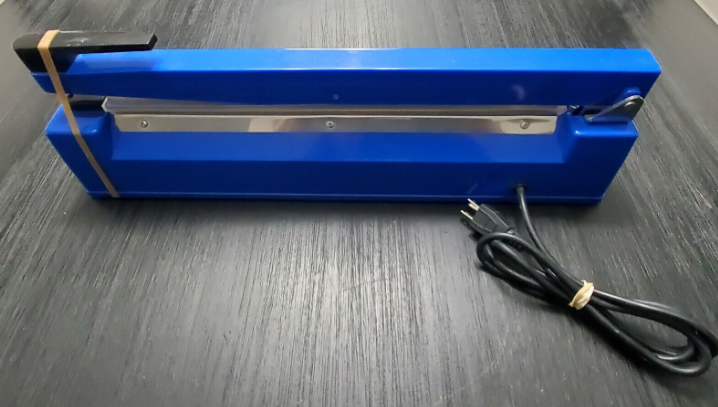

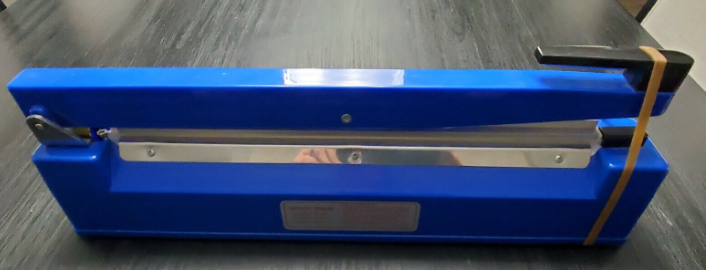

Impulse Sealer Manual Poly Bag Heat Sealing Machine PFS-400

Sale Hand Impulse Heat Sealer 400mm / 16 Inches / 40cm Wide Manual Plastic Film Poly Bag Heat Sealing Machine PFS-400 From Factory In China.Hand Impulse Heat Sealer Plastic (ABS) Body PFS-Series Manual Plastic Film Poly Bag Heat Sealing Machine with Copper Transformer inside which offers long serving life are a great option for lower volume applications such as the sealing of plastic bags and poly-tubing.Impulse sealers apply a brief impulse of heat to close the bag and provide a durable seal.This impulse hand sealer has a 2 mm or 3 mm seal, ideal for sealing products that are 6 mil thick or less. One rule of thumb is to purchase a sealer that is 2 inches larger than the widest bag that needs to be heat sealed.The extra inch on each side of the bag will allow a strong seal and faster operation. Impulse hand sealers create excellent air and watertight seals on plastics such as polyethylene, polyurethane, polyvinylchloride, polypropylene and other heat sealable materials.

Manual Plastic Film Poly Bag Heat Sealing Machine is designed for sealing thermoplastic materials such as polyethylene (PE), polypropylene (PP), and Mylar bags. It is commonly used for food packaging, storage bags, retail packaging, and small business applications that require airtight plastic bag sealing.Manual Plastic Film Poly Bag Heat Sealing MachineThe heating time should be adjusted based on the thickness and type of plastic material. Thinner bags require a lower heat setting, while thicker materials need slightly longer heating times. It is recommended to start with a low setting and gradually increase until a clean and strong seal is achieved.

Hand Impulse Heat Sealer 400mm / 16 Inches / 40cm Wide Manual Plastic Film Poly Bag Heat Sealing Machine Features:

Colour:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.6mm X 2
Sealing Width 3mm

Heat Sealers allow Poly Bags to be made to your desired length. Ideal for packaging home health care IV bags plus much more.

Requires a 110V or 220V outlet.

3 prong grounded plugs.

The front of each sealer has a control knob that allows easy temperature adjustment and an indicator light to show when the sealer is in use.

Bags are available in clear or with a white write-on area.

Polybag tubing is available in three widths for specialized packaging needs and flexible lengths.

Heating Time Range: 0.2 – 2 seconds (adjustable)

Compatible Materials: PE, PP, Mylar, and other thermoplastic bags

Application: Plastic bag sealing for food, packaging, and small business use

Hand operated impulse sealers are ideal for sealing PE and PP bags, used to package, food products, small machine parts, coffee beans and all manner of other small package items.

Hand operated bag sealer with adjustable heat timer.
The Heat Sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.

Hand Impulse Heat Sealer 400mm / 16 Inches / 40cm Wide Manual Plastic Film Poly Bag Heat Sealing Machine Specification:

Model: PFS-400
Colour:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.6mm X 2
Sealing Width 3mm
Heating time: 0.2-2 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5 X 10.5 X 19cm
Item Weight: 2.82 Kg
Material: ABS plastic

Ideal for retail, produce, grocery stores, and industrial sealing,

These poly plastic bag impulse heat sealers are professional grade and are equipped with innovative design that removes the need for operator training. Simply plug it in and it's ready to go, eliminating warm-up time. With it's durable cast metal construction, sealers are lightweight and portable. Adjustable time and light indicator lets you know when a tight seal is complete, making your sealing process vitally simple.Features:Includes 2 Free Replacement Elements And 2 Teflon Tapes

Ideal for retail, produce, grocery stores, and industrial sealing, these poly plastic bag impulse heat sealers are professional grade.

Hand Impulse Heat Sealer 400mm / 16 Inches / 40cm Wide Manual Plastic Film Poly Bag Heat Sealing Machine Package List:

1 X PFS-400 Hand Impulse Heat Sealer
2 X Extra Heat Elements
2 X Extra Teflon Protecting Sheets
1 X English User Manual
PFS-400 Hand Impulse Heat Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390mm
G.W/CTN:26.5Kg

How to Operate The Impulse Heat Sealer:

Step 1: Power Connection and Initial Setup

Begin by plugging the AC cord into a standard 100V–200V outlet, noting that the device does not feature a traditional power switch. You must then adjust the analog timer dial to set the heating duration, selecting a higher number for thicker materials and a lower number for thinner films.

Step 2: Positioning the Packaging Material

Lay your plastic bag or Mylar pouch flat across the sealing platform, ensuring there are no wrinkles or debris in the sealing area. Align the edges carefully to ensure a straight, professional 2mm wide seal that maintains the airtight integrity of the package.

Step 3: Activating the Impulse Heat Cycle

Firmly press the handle down to engage the internal electronic circuit, which will automatically trigger the heating element for your pre-set duration. Watch the indicator light on the chassis; it will illuminate during the active heating phase and turn off once the power is automatically cut.

Step 4: Cooling and Seal Solidification

After the light turns off, continue to hold the handle down for an additional 1–2 seconds to allow the molten plastic to cool and solidify. This crucial cooling period prevents the bag from sticking to the rubber and ensures the strongest possible bond before the pressure is released.

Step 5: Inspection and Final Adjustments

Release the handle and inspect the finished seam for any breaks or signs of overheating, such as melting through the material. If the seal is weak, slightly increase the heat time; if the material is damaged, decrease the duration until you achieve consistent, reliable results.

Step 6: Specialized Model Features

If you are utilizing the model, be aware that it includes a built-in function to print identification numbers directly onto the seal. To disable this feature if it is not required for your specific batch, simply flip the handle's silicone rubber strip over to avoid creating unintentional imprints.

By following these steps, the Impulse Heat Sealer can provide fast, reliable, and professional sealing results for food packaging, storage bags, and many other plastic materials.

HS CODE:8422303090

Hand Impulse Heat Sealer Plastic (ABS) Body PFS-Series Manual Plastic Film Poly Bag Heat Sealing Machine Specification:

**Zhejiang Tianyu industry Co. Ltd .Supplier Factory Manufacturer Make and Sale Hand Impulse Heat Sealer Plastic (ABS) Body PFS-Series Manual Plastic Film Poly Bag Heat Sealing Machine Specification**
Model No.	PFS-100	PFS-150	PFS-200	PFS-250	PFS-300	PFS-400
voltage	AC220V/50HZ 110V/60HZ
Impulse power	150W	220W	300W	350W	400W	600W
Max sealing length	100mm/4 inch/10cm	150mm/ 15cm/6 inch	200 mm/8 inch/20 cm	250 mm/10 inch/25 cm	300 mm/12 inch/30 cm	400 mm/16 inch/40 cm
Max sealing width	2mm					3mm
Max sealing thickness	0.6mm			0.8mm
Adjustable heating time	0.2-1.5s					0.2-2s
Dimensions (L x W x H)mm	245X95X170	295X95X180	330X100X172	380X102X183	430X102X175	575X105X190
Weight	1.06Kgs	1.24Kgs	1.26Kgs	1.58Kgs	1.68Kgs	2.82Kgs
QTY/CTN	20 PCS	20 PCS	10 PCS	10 PCS	10 PCS	10 PCS
Carton Size(mm)	490X255X640	525X295X655	510X345X360	535X395X360	525X445X360	590X555X390
G.W/CTN（Kg)	23	25.84	13.38	16.4	17.78	26.5

Zhejiang Tianyu industry Co. Ltd .Supplier Factory Manufacturer Make and Sale Hand Impulse Heat Sealer Plastic (ABS) Body PFS-Series Manual Plastic Film Poly Bag Heat Sealing Machine
