Single Jaw Foot Heat Sealer With Cutter Seal Machine PFS-350
Export Single Jaw Foot Impulse Heat Sealer With Cutter Plastic Bag Heat Sealing Machine PFS-350 From Factory In China.Single Jaw Foot Impulse Heat Sealer With Cutter Foot Pedal PFS-Series Foot Operated Plastic Bag Heat Sealing Machine helps to increase sealing production.This sealer, equipped with a foot pedal activator, frees the user’s hands to feed the machine.Each unit comes complete with a pedestal, stand, adjustable worktable and foot pedal. 2mm,3mm,5mm,8mm and 10mm sealing width available.A Hot Stamp Printer can be added as an optional part to print date, time and other information on your product.Other options available are our Heavy Duty Work Tables, Stand Extensions and Tilt Head adjustments.They can be added to each foot sealer for your specific needs.Available in 300mm, 450mm, 600mm and 800mm wide with either 2mm,3mm,5mm,8mm or 10mm seal width.
Impulse foot sealer
UL approval, highly reliable and durable impulse foot sealer machine. AIE brand, the best seller in United States, which represents the finest sealer under strictest quality controls. It provides durable seals for almost any sealable plastic films and bags such as polyethylene (PE), polypropylene (PP), polyvinylchloride (PVC), polyurenthane, polyolefin, pliofilm, Kel-F, polyflex, mylar, P.V.A, Tivac, Saran, Nylo etc. It has sturdy steel, lightweight construction and comes complete with a pedestal, stand, adjustable worktable and foot pedal. Distance between floor and seal is about 31 inches, if you need it taller, extension rod is always available at request. Free hand to improve efficiency. You may choose 2 mm width seal or 5 mm width seal. All work with 110 volts electricity. 220 volts units available upon request.
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s

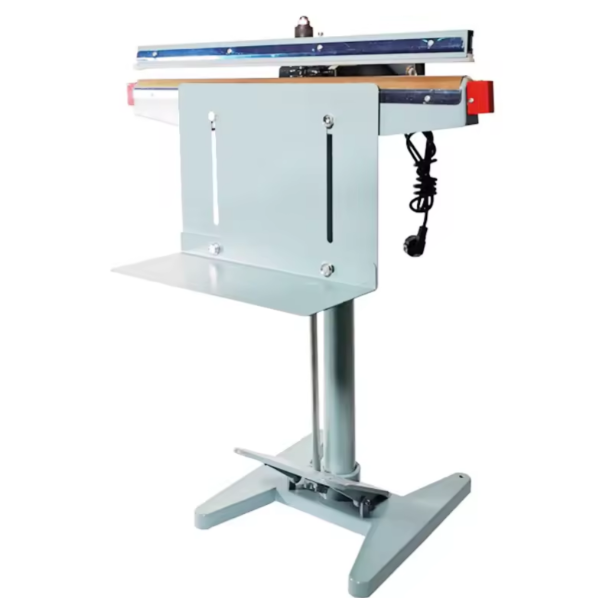

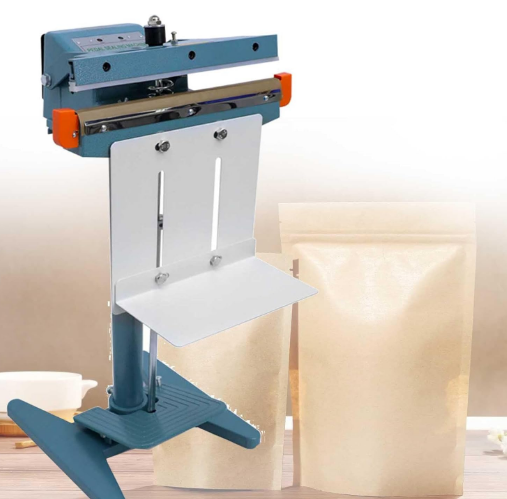

Single Jaw Foot Impulse Heat Sealer With Cutter Plastic Bag Heat Sealing Machine PFS-350 Features:
PFS-350
Maximum Sealing Length:14 Inches / 350mm / 35cmPFS-350
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heat Time: 0.2 -2.5s
Head can be adjusted to a 30 degree angle making it perfect for sealing liquid, powders, etc.
It has an obstruction free throat allowing the use of roll-dispensed material to pack and seal. Also, good for sealing roll bags.
Equipped with a sliding blade for cutting excess material a quarter inch from seal.
Distance between floor and seal is about 31 inches, if you need it taller, extension rod is always available at request.
Sealers work with 110 volts electricity.
No more mess, easy to clean and maintain. Great for packaging meat and fish products.
The Upper Jaw Impulse Foot Sealer has the sealing element on the upper seal jaw and the silicon rubber on the lower steel jaw.
This Upper Jaw Impulse Foot Sealer design keeps the sealing equipment above the product enabling the user to seal liquids or products with high moisture content.
This model makes a clean and secure 2mm, 3mm,5mm,8mm or 10mm seal on plastic materials.
Available in 350mm, 450mm, 650mm ,800mm wide with either 2mm, 3mm,5mm 8mm or 10mm seal width
Replacement parts are always available.
The Impulse Foot sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Single Jaw Foot Impulse Heat Sealer With Cutter Plastic Bag Heat Sealing Machine PFS-350 Specification:
Model: PFS-350
Maximum Sealing Length:14 Inches / 350 mm / 35 cm
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg

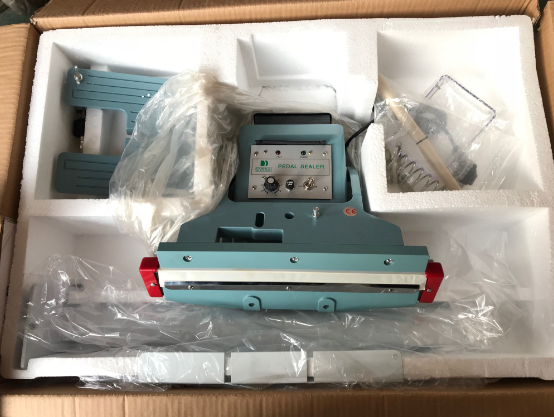

Single Jaw Foot Impulse Heat Sealer With Cutter Plastic Bag Heat Sealing Machine PFS-350 Package List:
1 X PFS-350 Foot Impulse Heat Sealer With Cutter
2 X Replacement Heating Elements
Model: PFS-350
Maximum Sealing Length:14 Inches / 350 mm / 35 cm
Maximum Bag Sealing Thickness: 0.8mm X 2
Sealing Width 8mm
Heating time: 0.2-2.5s
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 1200 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH): 450 X 540 X 880 mm
Net Weight:19 Kg
Sturdy Construction
Available In Different Seal Widths
Adjustable Product Support Tray
Easy to Use
Suitable for various bag materials including PE, Foil & Laminated Films
Impulse Foot Sealers, with their new and improved casting, ideal for small scale pre-packing industry. By having a foot control, the hands are free to feed the machine. Each machine comes complete with pedestal, stand, adjustable work table and foot pedal.
Single Jaw Foot Impulse Heat Sealer With Cutter Plastic Bag Heat Sealing Machine PFS-350 Package List:
1 X PFS-350 Foot Impulse Heat Sealer With Cutter
2 X Replacement Heating Elements
2 X Replacement Teflon Tapes
1 X English User Manual
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Single Jaw Foot Impulse Heat Sealer With Cutter Foot Pedal PFS-Series Foot Operated Plastic Bag Heat Sealing Machine Specification:
1 PCS/CTN
Carton Size:800 X 530 X 250 mm
Net Weight:19 Kg
HS CODE:8422303090
Single Jaw Foot Impulse Heat Sealer With Cutter Foot Pedal PFS-Series Foot Operated Plastic Bag Heat Sealing Machine Specification:
| Model. | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inch) |
450mm (18 Inch) |
650mm (26 Inch) |
800mm (32 Inch) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
