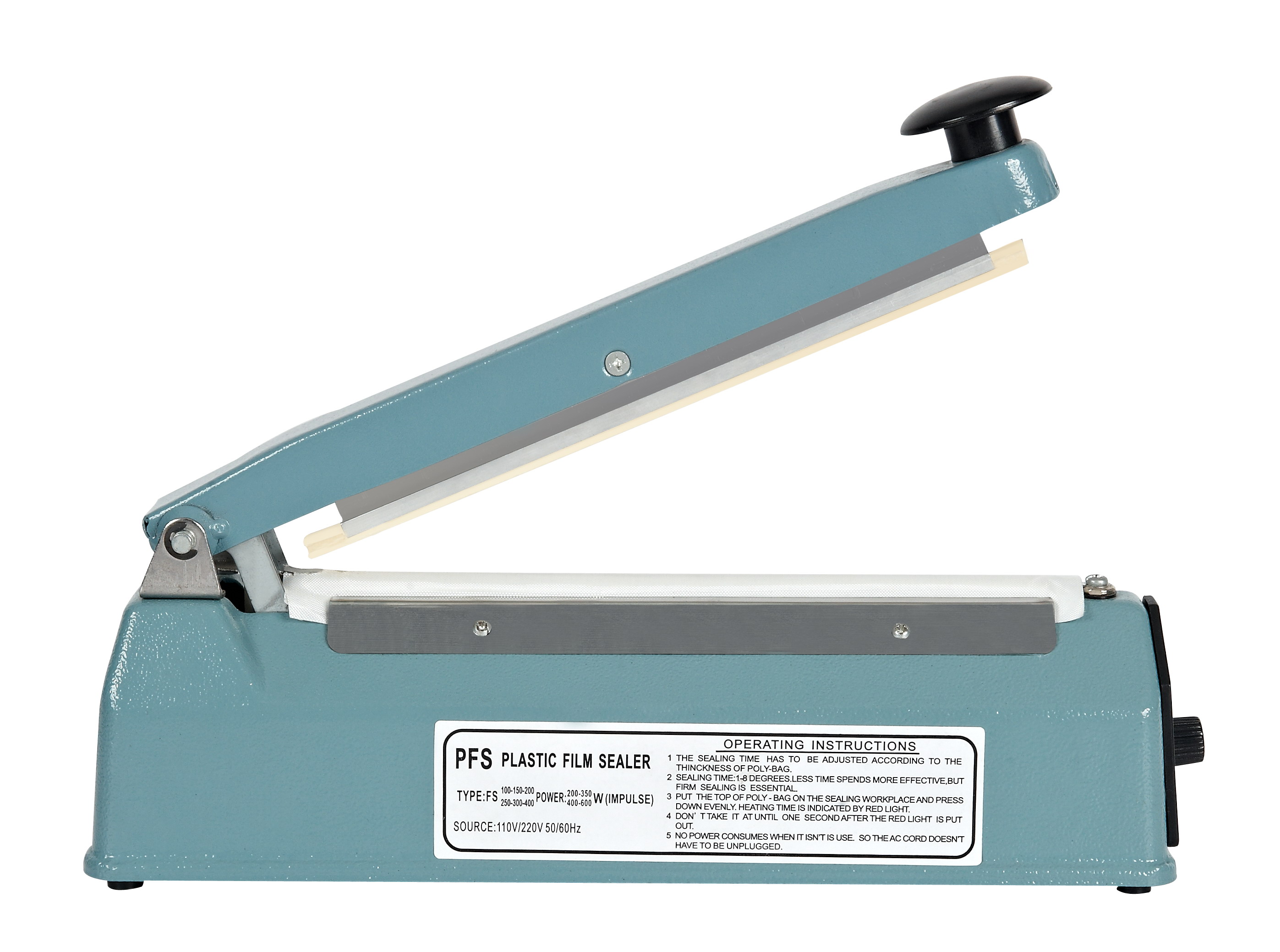

Impulse Heat Sealer Poly Bag and Tube Sealing Machine FS-400

Impulse Heat Sealer Poly Bag and Tube Sealing Machine FS-400

Production and Export Manual 16"/ 400 mm/ 16 inch/ 40 cm Length Impulse Heat Sealer FS-400 Poly Bag and Tube Sealing Machine From Zhejiang Tianyu industry Co. Ltd. Supplier Factory.Manual Impulse Heat Sealer Hand Iron Shell FS Series Poly Bag and Tube Sealing Machine is ideal for the sealing of poly bags and tubes. They are best used for low volume packaging production and can seal most types of common bags. To use an impulse sealer the operator must press the arm or foot pedal down, depending on the model or style of machine used. The bag or tube should be 2 inches smaller than the seal width of the impulse heat sealer. When sealing poly tubing an impulse sealer with cutter must be used. An impulse heat sealer with a standard 2mm seal will close a plastic bag 6 mil in thickness. This increases to 8 mil thickness with a 5 mm width seal. A double impulse sealer will seal poly bags greater than 10 mil. Boatman Marking offers a wide variety of impulse sealers from table top, to hand held and foot pedal operated, Boatman Marking will meet your specific packaging needs.

Manual 16"/ 400 mm/ 16 inch/ 40 cm Length Impulse Heat Sealer FS-400 Poly Bag and Tube Sealing Machine Feature:
  •
  • Compact Design
  • Strong Water Tight Seal
  • Fast Operating
  • Power Saving Precision Electronic Circuit
  • Long Life
  • Ideal for packaging bulk mail, literature, catalogs, or small parts
  • Lightweight dand easy to operate
  • Heat weld that closes each bag tight
  • Single phase w/ variable temperature control
  • Heat sealer with optimum sealing effects
  • A great sealer for PE/PP films/bags, bubble wraps etc. of different thicknesses
  • Perfect for household, warehouse, supermarket to pack candy, stationery, drugs etc.
  • Provides needed heat to melt the bag material so as to seal
  • Replaceable built-in fuse
  • Electronic control circuit with a LED indicator for auto-heating
  • An adjustable timer with 8 options, meets various packaging needs
  • Power-saving impulse sealing technology
  • Tough Iron shell with blue finish
  • Easy to handle
  • CE certified
  • This sealer is suitable to seal every kind of plastic films and widely used in the fields such as food and sweet stuff, drags, native and special goods, electric appliance parts etc. It is a perfect tool for home use to maintain product quality and avoid product loss.
  • Sealer Thermal lever that activates when pressing.
  • Width of the lever and thermal zone: 40 cm.
  • Power in operation: 600 W.

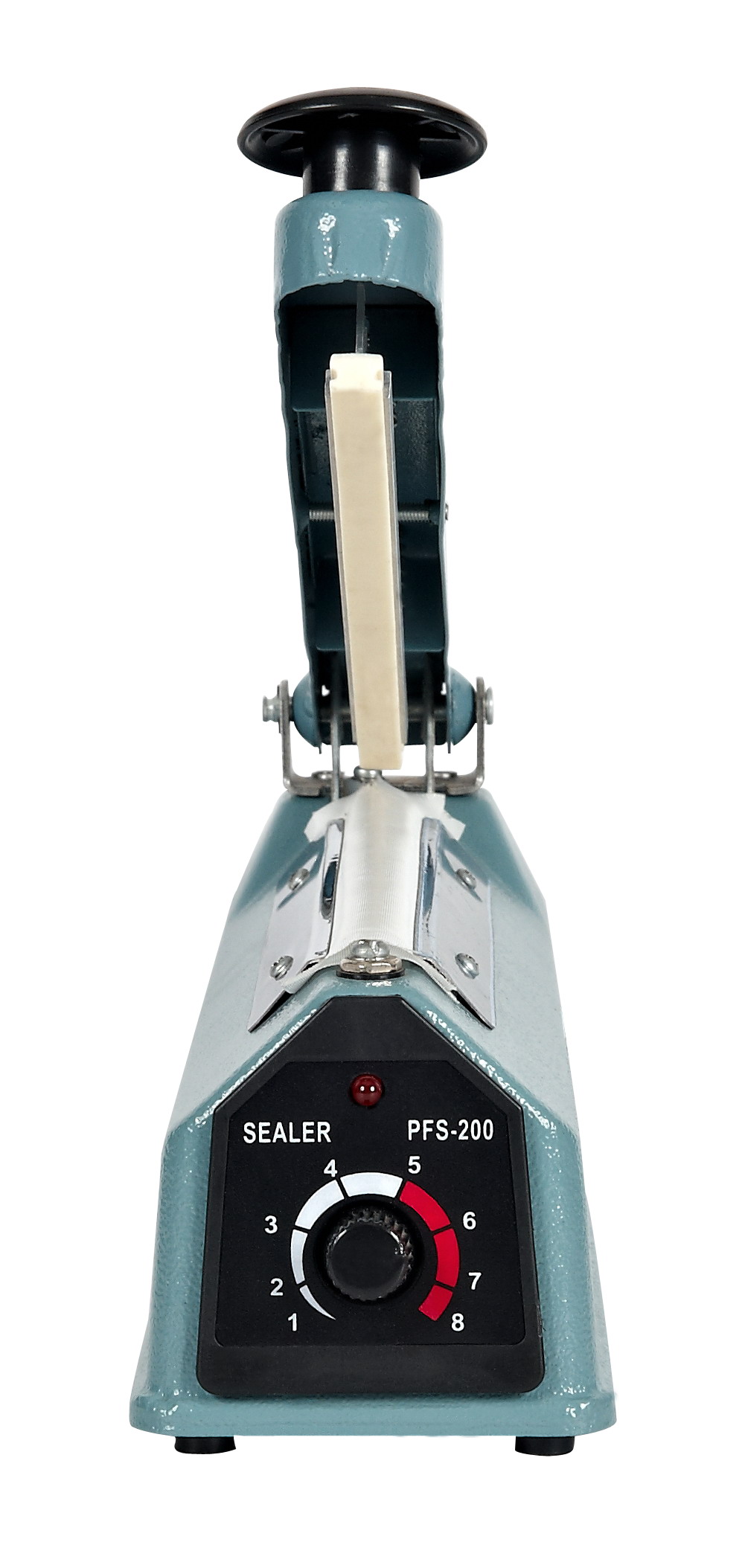

  • Potentiometer for setting the sealing time. Graduation from 1 to 8.
  • It works at 110V 60HZ Or 220V 50HZ
  • High quality silicone strip, heating strip, heat-resisting cloth, safety to use

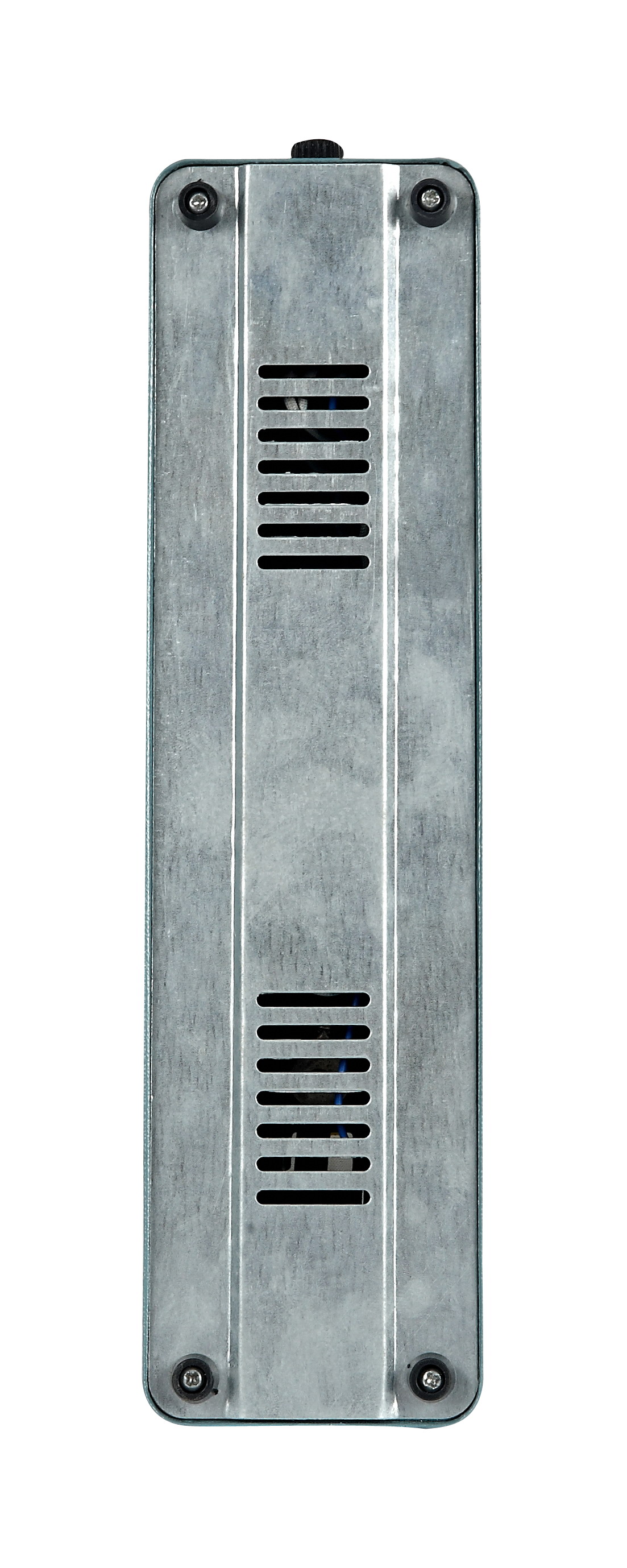

  • Iron handle, the bottom has a heat dissipation design, very durable
  • Iron shell, No deformation in long - term using.
  • High-quality silicone strip ensures smooth sealing
  • Keep the food fresh and the nutritional, extend preserving period
  • Anti-Bacteria, to ensure food safety
  • Moisture-proof, reduces oxidation and prevents dampness

Manual 16"/ 400 mm/ 16 inch/ 40 cm Length Impulse Heat Sealer FS-400 Poly Bag and Tube Sealing Machine Specifications:

1. Color: Blue
2. Model: FS-400
3. Power: 600W
4. Weight: 3.26 Kg
5. Dimensions: 575X105X195 mm (L x W x H)
6. Voltage: 110V 60HZ/220V 50HZ
7. Material: Iron Case
8. Plug: US Standard
9.Sealing Length: 16"/400 mm/16 inch/40 cm Long
10.Seal width: 2-3 mm
11.Max sealing thickness: 0.8 mm
12.Heat Time: 0.2 - 1.5 s
13.CE certified


Manual 16"/ 400 mm/ 16 inch/ 40 cm Length Impulse Heat Sealer FS-400 Poly Bag and Tube Sealing Machine Package includes:

1× FS-400 Manual Impulse Heat Sealer Poly Bag and Tube Sealing Machine
1× 16"/400 mm/16 inch/40 cm Long Free Replacement  Wire heat strip
1x 16"/400 mm/16 inch/40 cm Long Free Replacement Teflon Tapes
1x English Product Manual
1 PCS/Color Box
Color box Size:575X105X195 mm
FS-400 Manual Impulse Heat Sealer Poly Bag and Tube Sealing Machine Weight: 3.26 Kg
10 PCS/CTN
Carton Size:590x570x390 mm
G.W/CTN:32.6Kg

HS CODE:8422303090
Manual Impulse Heat Sealer Hand Iron Shell FS Series Poly Bag and Tube Sealing Machine Specifications:


Zhejiang Tianyu industry Co. Ltd.Supplier Manufacturing and Supply Manual Impulse Heat Sealer Hand Iron Shell FS Series Poly Bag and Tube Sealing Machine Specifications
Model  No. FS-200 FS-300 FS-400
Impulse voltage AC220V/50HZ 110V/60HZ AC220V/50HZ 110V/60HZ AC220V/50HZ 110V/60HZ
Impulse power 300W 400W 600W
Max sealing length 8"/200 mm/8 inch/20 cm 12"/300 mm/12 inch/30 cm 16"/400 mm/16 inch/40 cm
Max sealing width 2mm 2-3mm 2-3mm
Max sealing thickness 0.6mm 0.8mm 0.8mm
Adjustable heating time 0.2-1.5S 0.2-1.5S 0.2-2S
Dimensions (L x W x H) mm 333X100X173 470X105X190 575X105X195
Weight 1.98KGS 2.24KGS 3.26KGS
QTY/CTN 10PCS 10PCS 10PCS
Carton Size(mm) 535X345X360 570X485X385 590X570X390
G.W/CTN(Kg) 18.6 23.58 32.6
QTY(sets)/20'GP 4220 2630 2140
QTY(sets)/40'GP 8730 5450 4430
QTY(sets)/40'HQ 10240 6390 5190
