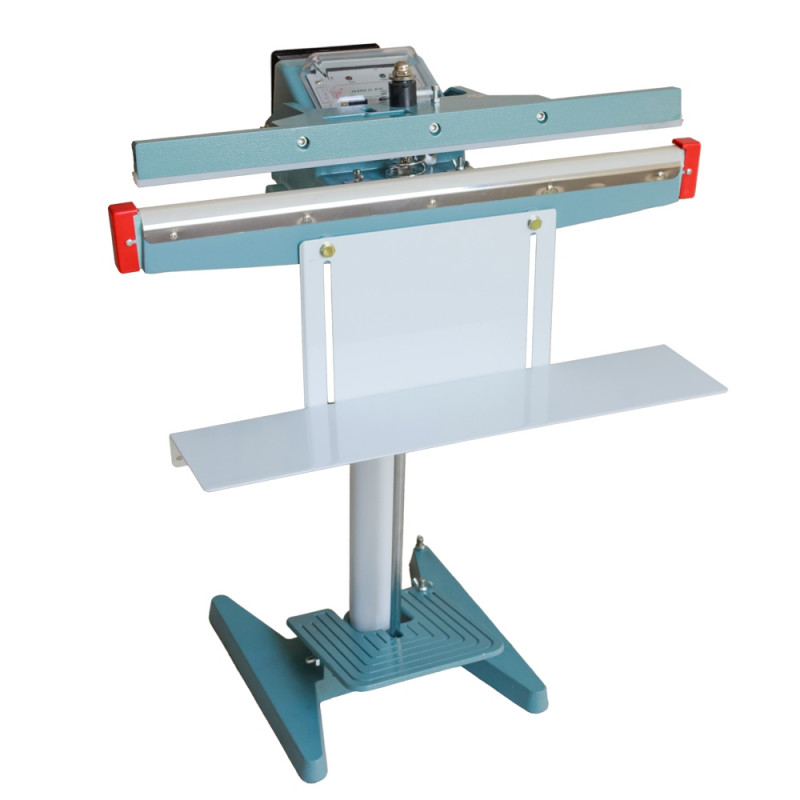

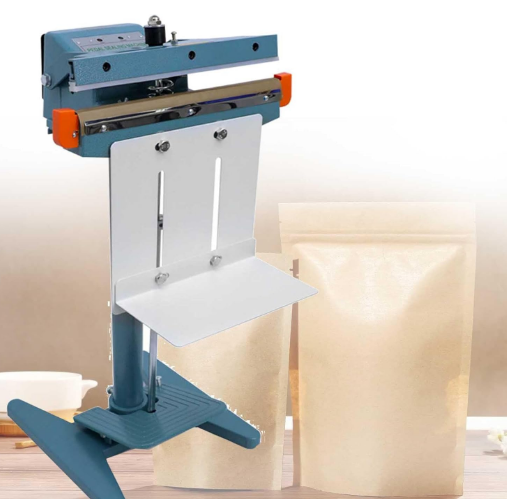

Single-Sided Impulse Sealer Plastic Sealing Machine PFS-650
Supply Single-Sided Heat Impulse Sealer 26 Inches / 650mm / 65cm Wide Plastic Bag Heating Sealing Machine PFS-650 From Factory In China.Single-Sided Heat Impulse Sealer PFS-Series Foot Pedal Plastic Bag Heating Sealing Machine is affordable and efficient packaging machines capable of sealing a wide variety of packages, ranging from small single portion packets to large heavy-duty materials.The foot pedal activation allows for hands-free operation.The seal width is 2mm,3mm,5mm,8mm,10mm.
Each hands-free foot pedal sealers provides distinctive features and characteristics designed for specific applications.Tabletop Impulse Sealers (stapler-style sealers) may be budget-friendly, but they are not as efficient.Hands-free sealers offer significant advantages, including time-saving, cost-effectiveness, and enhanced product quality.
This apparatus demonstrates an impressive sealing proficiency across a diverse spectrum of substrates. Employing a dual-impulse mechanism, hands-free sealers are imbued with twin top and bottom heating elements, orchestrated through a foot pedal initiation. This advanced configuration equips the sealers with unparalleled versatility, enabling the encapsulation of an extensive gamut of materials. In contrast, the historical absence of dual top and bottom heat units necessitated alternative and often intricate sealing methodologies to tackle recalcitrant substances such as vinyl.
Single-Sided Heat Impulse Sealer 26 Inches / 650mm / 65cm Wide Plastic Bag Heating Sealing Machine Features:
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8 mm
Heat Time: 0.2 -2.5s
Can Make OEM Products
No preheating required.
Single or twin heating could be chose depends on customer’s demands.
Twin element: available for aluminum bag, tinfoil bag, sterilization bag.
Single element: PE, PP, PVC, OPP, POF…plastic bag.
Perfect for budget and space conscious bag sealing applications and are ruggedly built to provide years of trouble free service.
Each pneumatically powered bag sealer unit has sufficient jaw clearance to introduce your package from back to front or side-to-side. Standard controls include a glycerin filled gauge, pressure regulator, separate heat and cool timers and a tap to start foot pedal. This ensures that each bag seal will be airtight and water tight. All IMPAK bag sealers are powder coated and therefore clean room compatible.
A bottom flange allows for this bag sealing unit to be mounted horizontally or vertically.
Each unit comes complete with a one-year warranty, detailed operating instructions and a spare parts kit.
Additional accessories:
(1) Can add an electric magnet or pneumatic eqipment for pedal switch controled.
(2) Date coder.
The Heat Sealer has got CE,RoHS and CCC certificate.
The Heat Sealer has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Single-Sided Heat Impulse Sealer 26 Inches / 650mm / 65cm Wide Plastic Bag Heating Sealing Machine Specification:
Model:PFS-650
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700 X 570 X 880mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Single-Sided Heat Impulse Sealer 26 Inches / 650mm / 65cm Wide Plastic Bag Heating Sealing Machine Package List:
1 X PFS-650 Single-Sided Heat Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Tapes
Model:PFS-650
Maximum sealing length: 26 Inches / 650mm / 65cm
Maximum bag sealing thickness: 0.8mm X 2
Sealing Width 8 mm
Heating time: 0.2-2.5 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: AC220V50HZ or AC110V/60HZ
Pulse power: 1500 W
Welding time: Infinitely Adjustable
External Dimensions (LXWXH) (mm): 700 X 570 X 880mm
Net Weight:24 Kg
Material:Die-cast Aluminium Alloy
Heat-press Al-stand pedal plastic-bag sealer is a safe and ideal sealing equipment of a new style and can be used to adore poly-ethiylene,polypropylene and multi-layer compound plastic. It is of tne heavy-giade among the pedal ones and made al assembling the Al-alloycastings and equippea with an extra power transformer and upper-lower aajustablebracket for heavy-object sealing.Its quick and extra shorted time of scaling and specially high eftciency can not be replaced by the ardinary sealeis.
It is suitable for the plastic sealing of the obiect with a larger shape and volume and a neavior weight and for the selaing of rice.beans etc. farming products ana many chemicalgooas with a firm str egth of scaling, good looking, practicality Jong dura billty, stabte working performance and a vast usage, really a durable equipment of a low cost.
It is suitable for the plastic sealing of the obiect with a larger shape and volume and a neavior weight and for the selaing of rice.beans etc. farming products ana many chemicalgooas with a firm str egth of scaling, good looking, practicality Jong dura billty, stabte working performance and a vast usage, really a durable equipment of a low cost.
Single-Sided Heat Impulse Sealer 26 Inches / 650mm / 65cm Wide Plastic Bag Heating Sealing Machine Package List:
1 X PFS-650 Single-Sided Heat Impulse Sealer
2 X Extra Sealing Elements
2 X Extra Teflon Tapes
1 X English User Manual
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Single-Sided Heat Impulse Sealer PFS-Series Foot Pedal Plastic Bag Heating Sealing Machine Specification:
1 X Bag of Spare Parts
1 PCS/CTN
Carton Size:800 X 530 X 250mm
Net Weight:24 Kg
HS CODE:8422303090
Single-Sided Heat Impulse Sealer PFS-Series Foot Pedal Plastic Bag Heating Sealing Machine Specification:
| Model | PFS-350 | PFS-450 | PFS-650 | PFS-800 |
| Impulse Voltage | AC220V/50HZ or AC110V/60HZ | |||
| Impulse Power (W) | 1200 | 1250 | 1500 | 1800 |
| Max.Sealing Length |
350mm (14 Inches) |
450mm (18 Inches) |
650mm (26 Inches) |
800mm (32 Inches) |
| Sealing Width | 2mm/3mm/5mm/8mm/10mm | |||
| Max.sealing thickness | 0.8mm X 2 | |||
| Heat Time (sec) | 0-2.5 | |||
| Welding Time | Infinitely Adjustable | |||
| External Dimensions (L×W×H) (mm) | 450X540X880 | 550X540X880 | 700X570X880 | 855X570X880 |
| Package | 1 PCS/CTN | |||
| Carton Size(mm) | 800X530X250mm | |||
| Net Weight(Kg) | 19 | 21 | 24 | 29 |
