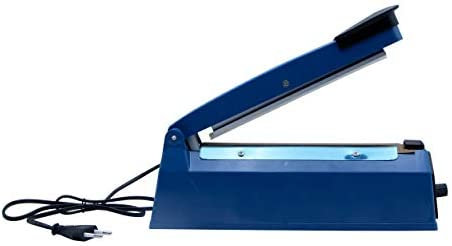

Impulse Heat Sealer Machine Plastic Film Sealing Bag PFS-400
Wholesale Impulse Heat Sealer Machine 400mm / 16 Inches / 40cm Wide Hand Operated Plastic Film Sealing Bag Machine PFS-400 From Factory In China.Impulse Heat Sealer Machine Plastic ABS Shell PFS-Series Hand Operated Plastic Film Sealing Bag Machine provide the best packaging solution in the most affordable, reliable, portable, and efficient way possible!Select from a variety of sealing lengths and seal widths based on your individual packaging needs.Heat Sealers including Hand Held, Impuse and Industrial Sealers.Impulse Heat Sealer Machine Plastic ABS Shell PFS-Series Hand Operated Plastic Film Sealing Bag Machine are only hot for the very short weld cycle - a matter of a fraction of a second. This makes them safer and cheaper to use. These bag sealers are extremely fast and will weld up to 1000 gauge polythene.
Made of a Plastic ABS Shell that meets FDA production standards and a compact lightweight design make these impulse sealers easy to use and very effective.They include a visual heating display, variable temperatures and instant warm up.100mm,150mm,200mm,250mm,300mm models feature the standard 2mm seal, but for a more heavy duty seal, consider the 8",12",16"model with 3mm,5mm,8mm,10mm seal; this impulse heat sealer provides an 16” length and medical grade 3mm width seal with an embossed, honeycomb texture. It creates air and watertight seals on sterilization (paper-plastic) bags and tubing materials. It also has a built-in beeping timer to notify the user when each seal is complete.
Colour:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2s
Impulse Heat Sealer Machine 400mm / 16 Inches / 40cm Wide Hand Operated Plastic Film Sealing Bag Machine Features:
Colour:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2s
Versatile Material Compatibility: Ideal for KEL-F, POLYFLEX, P.V.A., and more.
Energy-Efficient Design-Uses power only when sealing.
Strong Seals-Provides water and air-tight seals, essential for autoclaving and sterilization procedures.
Ready to Use-Comes fully assembled.Plugs into any standard plug.
Light-weight, easy to use it.Strong power but don't waste electricity
Heat time is short.Timer Knob for adjustment.
Light-weight, easy to use it.Strong power but don't waste electricity
More accurate with precision electronic control
Simple to use - No operator training
Impulse Sealing System
Heat time is short
Seals Uniformily - Every Time
No Warm-up time is necessary
Timer Knob for adjustment of sealing thickness material.
Use a lowest number in case seal burns through.
Too hot and the film will melt and the paper will burn
Regularly check the condition of the upper and lower PTFE tapes
Extra Element Kit: Includes one additional element kit for extended use.
Impulse Heat Sealer Machine Plastic ABS Shell PFS-Series Hand Operated Plastic Film Sealing Bag Machine has got CE,RoHS and CCC certificate.
Customize: OEM and ODM available.
Impulse Heat Sealer Machine 400mm / 16 Inches / 40cm Wide Hand Operated Plastic Film Sealing Bag Machine Specification:
Model: PFS-400
Colour :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5 X 10.5 X 19cm
Item Weight: 2.82 Kg
Material: Plastic (ABS) Shell
Impulse Heat Sealer Machine 400mm / 16 Inches / 40cm Wide Hand Operated Plastic Film Sealing Bag Machine Package List:

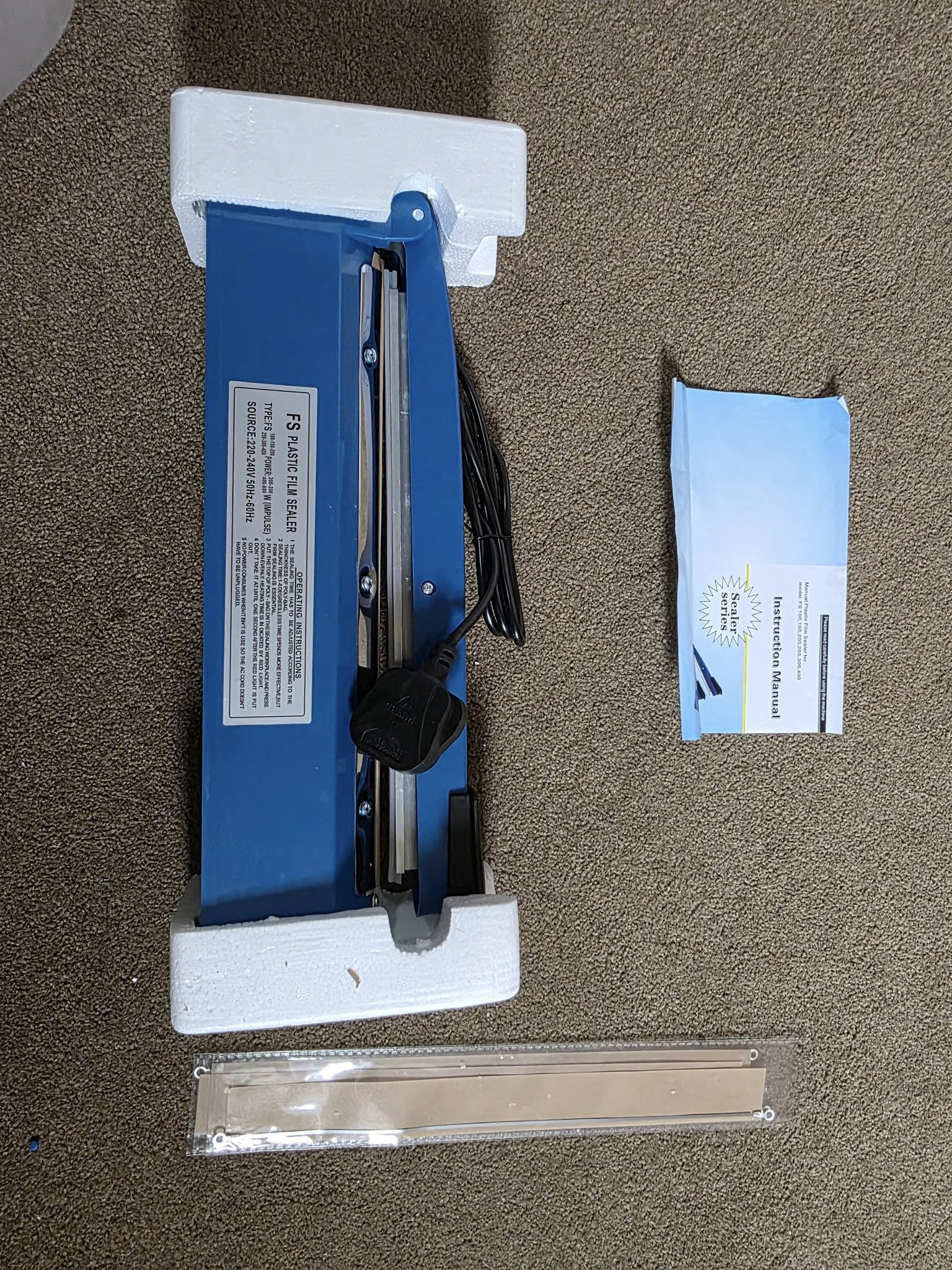

1 X PFS-400 Impulse Heat Sealer
2 X Spare Upper PTFE Cloth
2 X Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Heat Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390mm
G.W/CTN:26.5Kg
Model: PFS-400
Colour :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5 X 10.5 X 19cm
Item Weight: 2.82 Kg
Material: Plastic (ABS) Shell
Always keep sealing platform clear.
Never use moisture to clean sealing surface.
Every time you replace the element, replace the lower and upper teflon cloth.
A worn silicon rubber will influence the seal, change the silicon when worn or burned.
Easy to use
Automatic timer
Suitable film: polypropylene and polythene bags and tubing
Use a lowest number in case seal burns through.
Too hot and the film will melt and the paper will burn
Regularly check the condition of the upper and lower PTFE tapes
Impulse Heat Sealer Machine 400mm / 16 Inches / 40cm Wide Hand Operated Plastic Film Sealing Bag Machine Package List:
1 X PFS-400 Impulse Heat Sealer
2 X Spare Upper PTFE Cloth
2 X Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Heat Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390mm
G.W/CTN:26.5Kg
Zhejiang Tianyu industry Co. Ltd .Supplier Factory Manufacturer Make and Wholesale Impulse Heat Sealer Machine Plastic ABS Shell PFS-Series Hand Operated Plastic Film Sealing Bag Machine Easy to Use:
1. Adjust the timer set to your poly plastic application.
2. Press down on the handle to activate the machine.
3. Apply pressure to allow the plastic to cool after the heat light indicator turns off to secure a strong seal.
4. Slide the trimming blade to cut the excess plastic, if applicable.
5. Release the handle.
HS CODE:8422303090
Impulse Heat Sealer Machine Plastic ABS Shell PFS-Series Hand Operated Plastic Film Sealing Bag Machine Specification:
| Model No. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| voltage | AC220V/50HZ 110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max sealing length | 100mm/4 inch/10cm |
150mm/ 15cm/6 inch |
200 mm/8 inch/20 cm | 250 mm/10 inch/25 cm | 300 mm/12 inch/30 cm | 400 mm/16 inch/40 cm |
| Max sealing width | 2mm | 3mm | ||||
| Max sealing thickness | 0.6mm | 0.8mm | ||||
| Adjustable heating time | 0.2-1.5s | 0.2-2s | ||||
| Dimensions (L x W x H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06Kgs | 1.24Kgs | 1.26Kgs | 1.58Kgs | 1.68Kgs | 2.82Kgs |
| QTY/CTN | 20 PCS | 20 PCS | 10 PCS | 10 PCS | 10 PCS | 10 PCS |
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN（Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
