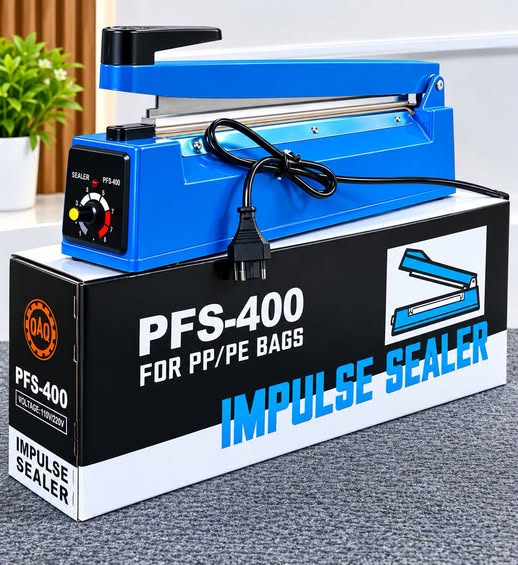

Impulse Plastic Bag Sealer Tabletop Sealing Machine PFS-400
Sale Impulse Plastic Bag Sealer Tabletop Poly-tubing Heat Sealing Machine PFS-400 From Factory In China.Impulse Plastic Bag Sealer Plastic ABS Shell PFS-Series Tabletop Poly-tubing Heat Sealing Machine is used to seal polythene and plastic bags as part of a packaging process.Heat sealing is used in packaging for a huge range of products of many different dimensions, shapes and materials.It is one of the most widely used ways of creating a protective enclosure which also facilitates handling.
When deciding whether to buy an impulse sealer or a constant sealer, it is important to understand the heat required for the packaging you wish to use, how many packs you wish to produce, and their size.Impulse heaters are the entry point for heat sealing machines and, depending on their specification, are entirely suitable for businesses packing up to 20 products per hour, or possibly more.They are also relatively low on electricity usage because they are only heated while the seal is formed. They are also an easy way of sealing on more than one side of the pack, simply by manually turning the pack.Constant sealers are more expensive, and use more power, but they are capable of sealing heavier gauge plastics, films with a foil content, or multiply films.They are also designed with automated feed options and accelerated production.For commercial businesses producing 50 or more packs per hour, constant sealers are likely to be the best option.
Impulse heat sealers have one or two heating elements.The elements are heated only when they are closed around the bag. The jaws of the sealing machine press the heating elements against a heat-proof rubber pad for the length of time required to create a secure seal. A short cooling time allows the plastic to fuse properly. The elements are coated or covered to ensure that the bag does not stick to them when the jaws are released.
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2s
Impulse Plastic Bag Sealer Tabletop Poly-tubing Heat Sealing Machine Features:
Model: PFS-400
Color:Light Blue,Green,White or Red Model: PFS-400
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2s
Adjustable Sealing Time: Multiple heating levels (typically 8) allow customization based on the thickness of the plastic film, ensuring a perfect seal without burning.
Instant Operation & Safety: These machines do not require pre-heating; they apply heat only when the handle is pressed down. An auto LED indicator lets you know when the seal is finished.
Energy Efficient: Impulse technology ensures power is only used during the brief sealing cycle, enhancing safety and conserving energy.
Durable Construction: Many models feature die-cast metal or anti-rust aluminum bodies for long-term reliability in both home and commercial, such as supermarkets or kitchens.
Versatile Sizing & Types: Available in various lengths, commonly 8, 12, or 16 inches (200mm – 400mm).
Low Maintenance: These machines typically include replaceable heating elements and Teflon sheets.
They draw power exclusively during the active sealing cycle, cutting energy consumption and minimizing operational risks.
With adjustable timing controls, these sealers easily handle varying bag thicknesses—including polyethylene, polypropylene, and laminated films—while their compact footprint fits seamlessly into retail, food service, medical, and manufacturing workflows. Thanks to durable construction and low-maintenance components, they offer an essential, cost-effective solution for packaging lines that demand quick, dependable closures.
Handheld bag sealers are manually operated and require the placing of bags into the jaws of the machine which is then switched on to heat and form the seal. Hand held equipment is a versatile solution for businesses packing relatively few products, and does not require significant amounts of space.
Buyers should look for handheld machines which are light in weight and designed with safety in mind. Controls too offer significant operational advantages such as timers for sealing and cooling. Hand held sealers are usually impulse machines, but hand held constant machines are also available for packaging materials which require higher temperatures.
Impulse Plastic Bag Sealer Tabletop Poly-tubing Heat Sealing Machine Specification:
Model: PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic

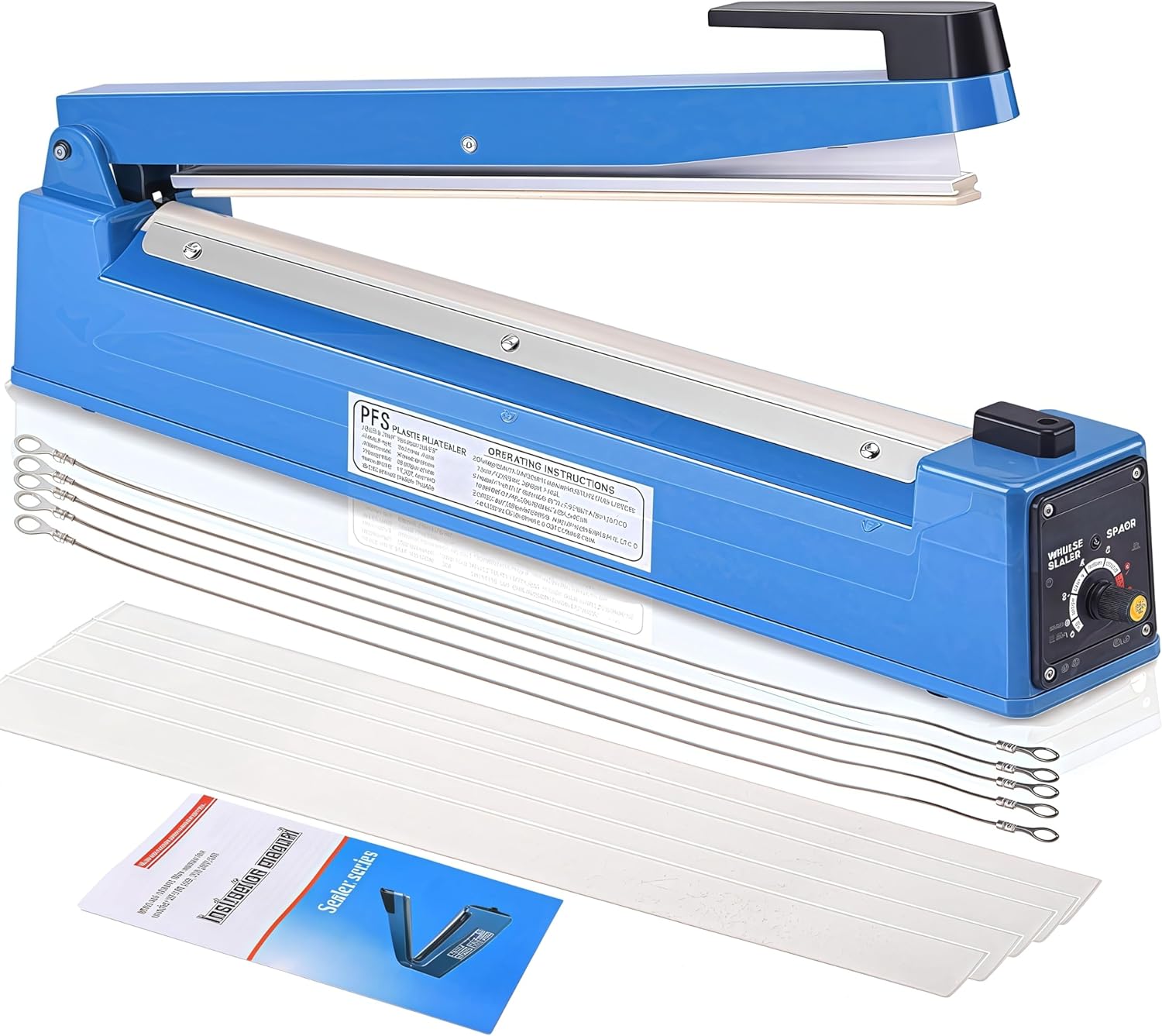

Impulse Plastic Bag Sealer Tabletop Poly-tubing Heat Sealing Machine Package List:
1 X PFS-400 Impulse Plastic Bag Sealer
2 X 16 Inches Spare Heat-resistant Strips
2 X 16 Inches Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Plastic Bag Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390mm
G.W/CTN:26.5Kg
Model: PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
Adjust the Timer: Turn the dial to a setting suitable for your bag thickness. Start with a low number (e.g., 2-3) to avoid burning, and increase if the seal is weak.
Position the Bag: Place the open end of the bag flat on the sealing platform (the mesh/metal strip area).
Apply Pressure: Lower the handle firmly. A light will turn on, indicating the heating element is working.
Hold and Cool: Hold the handle down for 1-3 seconds after the light goes out. This cooling phase is essential for a solid seal.
Release and Inspect: Raise the handle and check the seal. It should look clear and consistent.
Impulse Plastic Bag Sealer Tabletop Poly-tubing Heat Sealing Machine Package List:
1 X PFS-400 Impulse Plastic Bag Sealer
2 X 16 Inches Spare Heat-resistant Strips
2 X 16 Inches Spare Heating Wires
1 X English User Manual
PFS-400 Impulse Plastic Bag Sealer Weight: 2.82 Kg
Color Box Size:575 X 105 X 190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590 X 555 X 390mm
G.W/CTN:26.5Kg
HS CODE:8422303090
Impulse Plastic Bag Sealer Plastic ABS Shell PFS-Series Tabletop Poly-tubing Heat Sealing Machine Specification:
| Model. | PFS-100 | PFS-150 | PFS-200 | PFS-250 | PFS-300 | PFS-400 |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Max. sealing length | 100mm/4 inches | 150mm/6 inches | 200mm/8 inches | 250mm/10 inches | 300mm/12 inches | 400mm/16 inches |
| Sealing width | 2mm | 3mm | ||||
| Max sealing thickness | 0.6mm | 0.8mm | ||||
| Adjustable heating time | 0.2-1.5s | 0.2-2s | ||||
| Dimensions (LX W X H)mm | 245X95X170 | 295X95X180 | 330X100X172 | 380X102X183 | 430X102X175 | 575X105X190 |
| Weight | 1.06Kgs | 1.24Kgs | 1.26Kgs | 1.58Kgs | 1.68Kgs | 2.82Kgs |
| Package | 1 PCS/Color Box | |||||
| QTY/CTN | 20 Pcs | 10 Pcs | ||||
| Carton Size(mm) | 490X255X640 | 525X295X655 | 510X345X360 | 535X395X360 | 525X445X360 | 590X555X390 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
