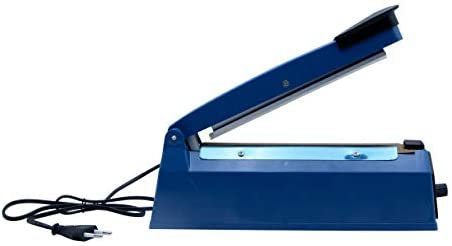

Hand Impulse Sealer Electric Plastic Sealing Machine PFS-100
Make and Export Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine PFS-100 In Factory From China.Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine is great for light-duty poly bags.The bag heat sealer is designed for many different light industrial uses.Set timer for bag thickness, hold the handle down until light comes on, let cool and release.The seal forms a tight, secure 2mm,3mm,5mm,8mm,10mm wide seal on polyethylene and polypropylene up to a thickness of 0.8mm with no warm-up necessary.Electricity is used only when the sealing bar is down.
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine is a handy portable machine suitable to seal every kind of plastic films and widely used in the fields such as food and sweet stuff, drugs, native and special goods, electrical appliance parts etc. It is easy to use and economical sealing equipment for manufacturers, stores and service industry. To operate, plug the cable into the power source, adjust the timer, put the plastic bag onto the sealing platform then push down and hold the handle.The electronic circuit controls the heat automatically.Once the light indicator turns off, the power is cut off automatically.1-2 seconds later, release the handle gently and the perfect seal is completed.If the break or damage appears on the seal, it is because of too much heal and this can be managed by reducing (turning timer anticlockwise) and if plastic bag sticks to the handle rubber then you lifted the handle too soon (less cooling time). After balancing required temperature settings, please keep it unchanged in every time use for that particular material.
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Features:
Max.Sealing Length:4 Inch / 100mm / 10cm
Width for sealing: 2mm
Max. thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Can OEM Products
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max.Sealing Length:4 Inch / 100mm / 10cm
Width for sealing: 2mm
Max.thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine is perfect for businesses and warehouses. Designed to ensure airtight sealing, these sealers are compatible with a variety of packaging materials, offering versatility and strength.
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Package list:
1 X PFS-100 Hand Impulse Sealer
2 X Sealing Wires
2 X High Temperature Clothes
1 X English User Manual
PFS-100 Hand Impulse Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245 X 95 X 170mm
20 PCS/CTN
Carton Size:490 X 255 X 640mm
G.W/CTN:23 Kg
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine Use:
1.The machine without power switch. The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time. The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time. When the light is off, the power is automatically disconnected. After about 1-2 seconds, release the handle on a good seal.
2.The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3.If the seal is not strong, it is because the heating time is too short. Keep the knob clockwise to extend the heating time.
4.If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out. Please release handle a little bit late.
5.Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6.The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Features:
Width for sealing: 2mm
Max. thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Can OEM Products
Hand impulse sealer is made of Plastic body and Aluminium Framework
It seals bags by impulse heating of bottom mouth of the impulse sealer.
Fast operating, power saving compact design.
Precision electronic circuit.
The bag sealer operates only when arm is depressed.
Impulse sealer frequently used in food and feed sectors for packaging purposes.
Seals both PE and PP bags.
Precision electronic control circuit
Portable and compact size
Impulse sealing for power-saving
Adjustable timer creates perfect seals for varying bag thickness
Labor-saving design with long handle
Comes with spare heating filament and heat resistant cloth.
CE,RoHS and CCC Certified.
Customize: OEM and ODM available.
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max.Sealing Length:4 Inch / 100mm / 10cm
Width for sealing: 2mm
Max.thickness for seal: 0.8mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine is perfect for businesses and warehouses. Designed to ensure airtight sealing, these sealers are compatible with a variety of packaging materials, offering versatility and strength.
Hand Impulse Sealer 4 Inch / 100mm / 10cm Width Electric Plastic Bag and Film Paper Heat Sealing Machine Package list:
1 X PFS-100 Hand Impulse Sealer
2 X Sealing Wires
2 X High Temperature Clothes
1 X English User Manual
PFS-100 Hand Impulse Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245 X 95 X 170mm
20 PCS/CTN
Carton Size:490 X 255 X 640mm
G.W/CTN:23 Kg
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine Use:
1.The machine without power switch. The AC power cord into the outlet, according to the thickness of the material to be sealed, adjust the heating time. The plastic on the sealing surface, then press the handle, the circuit is automatically controlled heating time. When the light is off, the power is automatically disconnected. After about 1-2 seconds, release the handle on a good seal.
2.The square when an access point appears damaged seal, it is because the heating time is too long, please dial anti-clockwise rotation to shorten the heating time.
3.If the seal is not strong, it is because the heating time is too short. Keep the knob clockwise to extend the heating time.
4.If a plastic bag stuck to the rubber plate, indicating the cooling time is not enough, we must extend the cooling time after the light goes out. Please release handle a little bit late.
5.Adjust heating time later, in use should remain unchanged, in continuous use do not have to make any adjustments.
6.The machine can always plug the AC power cord into the power outlet, do not consume power when not sealed.
HS CODE:8422303090
Hand Impulse Sealer Plastic Body PFS-Series Electric Plastic Bag and Film Paper Heat Sealing Machine Specification:
| Model No | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
| Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
| Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
| Max sealing length |
100mm (4 Inch) |
150mm (6 Inch) |
200mm (8 Inch) |
250mm (10 Inch) |
300mm (12 Inch) |
400mm (16 Inch) |
| Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.4mm | 0.4mm |
| Max sealing width | 2mm | 3mm | ||||
| Heating time | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-1.5 s | 0.2-2 s |
| Timer Setting | 8 Grade | |||||
| Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
| Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
| Package | 1 Pcs/Color Box | |||||
| QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
| Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
| G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
| QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
| QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
| QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
