Table Impulse Sealer Heat Closing Foil Bag Machine PFS-100

Table Impulse Sealer 100mm / 4 inches / 10cm Wide Heat Closing Foil Bag Machine PFS-100 From Factory In China.Table Impulse Sealer Plastic ABS Shell PFS-Series Heat Closing Foil Bag Machine intended only for closing foil bags.This model is intended for seals of length up to 400 mm.Seal is performed by kanthal sealing element of the width of 2 mm.This sealer is suitable for non-series usage.You’ve probably seen those sleek, handheld devices that zip shut plastic bags in a flash, but you might not know they’re impulse heat sealers. They use a brief, high‑temperature pulse to fuse thermoplastic films only at the contact points, giving you a strong, clean seal without melting the whole material.Understanding how the pulse, temperature, and seal width interact is key to mastering the tool, and the next sections will show you exactly what to adjust for any material you work with.

Impulse heat sealers are devices that join thermoplastic films by applying a brief, high‑temperature pulse.You operate them by placing a film stack between two heated jaws, then triggering a timed pulse that melts the polymer surface and fuses the layers.The seal forms only where the jaws contact, leaving surrounding material untouched. You can adjust temperature, pressure, and dwell time to match film thickness, composition, and desired seal strength.Modern units include digital controls, safety interlocks, and interchangeable sealing bars for various widths. Because the heat is applied for milliseconds, the process minimizes thermal degradation and energy consumption.This makes impulse sealing ideal for packaging, medical, and industrial applications requiring reliable, repeatable bonds.

Table Impulse Sealer 100mm / 4 inches / 10cm Wide Heat Closing Foil Bag Machine Features:

Max Sealing Length: 100mm / 4 Inches / 10cm
Width for seal: 2mm
Thickness for seal: 0.6mm
Heat Time: 0.2 -1.5s
Can Make OEM Products

Table top impulse arm sealers provide a quick, efficient, and low cost means for sealing any type of thermoplastic or poly film materials.

Sealing bags insures your products stay fresh and clean and all items in the bag make it to the customer.

We recommend impulse hand sealers for your most basic plastic sealing applications.

Our hand sealers seal poly bags and any thermoplastic materials such as polyethylene (PE) and polypropylene (PP) quickly and efficiently. No warm up time is needed.

A signal light indicates the heat cycle is complete and the seal is complete. Once the timer is set, hand sealers will provide a consistently flat seal that is air and water tight.

Hand sealers can seal approximately 1,000 seals/day. Impulse sealers can seal polyethylene, saran, nylon, polyvinylchloride, polypropyelene, Kel-F, Mylar, polyflex, polyurethane, and polyvinyl alcohol.

Easy to use-No warm up time is needed.
Just place your film/bag between the sealing arm, press down and release when sealing cycle is complete.

After setting the temperature, pressure, and dwell time, the machine delivers a short, high‑energy burst through the sealing jaws.

The burst passes through a resistor or heating element that converts electrical energy into heat within milliseconds. That heat melts the polymer surface of the film, while the applied pressure forces the molten layers into intimate contact.

Once the dwell time expires, the controller cuts power, allowing the material to cool rapidly and solidify, forming a permanent seal.

Because the heating interval is brief, only the seam area reaches melt temperature, preserving the rest of the package.

The cycle repeats for each seal, ensuring consistent strength and minimal thermal distortion.

Table Impulse Sealer 100mm / 4 inches / 10cm Wide Heat Closing Foil Bag Machine Specification:

Model: PFS-100
Colour: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Thickness for seal: 0.6mm
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug/AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
The heart of an impulse heat sealer consists of a power supply, a controller, a heating element (usually a nichrome or ceramic resistor), sealing jaws, and a pressure‑adjustable frame. You’ll find the power supply converts mains voltage to a low‑voltage DC that feeds the controller. The controller regulates pulse duration and temperature, while the heating element converts electrical energy into heat. Sealing jaws clamp the film and transmit heat, and the adjustable frame lets you set the correct pressure for different materials.

Table Impulse Sealer 100mm / 4 inches / 10cm Wide Heat Closing Foil Bag Machine Package list:

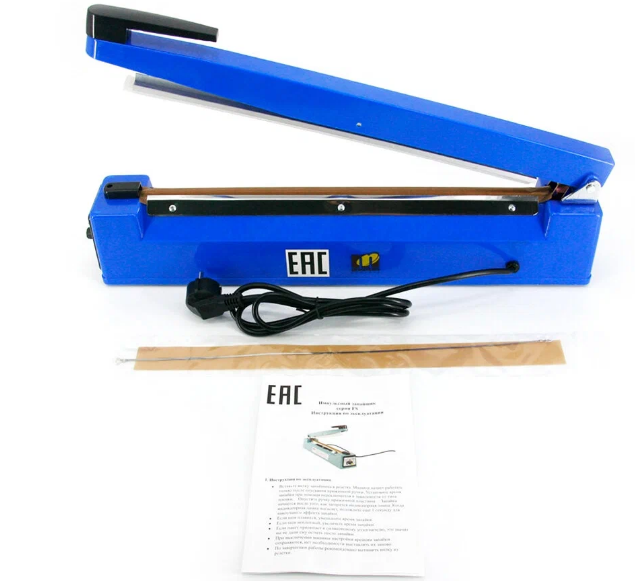

1 X PFS-100 Table Impulse Sealer
2 X Sealing Wires
2 X High Temperature Clothes
1 X English User Manual
PFS-100 Table Impulse Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245 X 95 X 170mm
20 PCS/CTN
Carton Size:490 X 255 X 640mm
G.W/CTN:23Kg

HS CODE:8422303090
Table Impulse Sealer Plastic ABS Shell PFS-Series Heat Closing Foil Bag Machine Specification:

**Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer Make and Export Table Impulse Sealer Plastic ABS Shell PFS-Series Heat Closing Foil Bag Machine Specification**
Model	PFS-100	PFS-150	PFS-200	PFS-250	PFS-300	PFS-400
Impulse voltage	AC220V/50HZ or AC110V/60HZ
Impulse power	150W	220W	300W	350W	400W	600W
Max. sealing length	100mm/4 inches	150mm/6 inches	200mm/8 inches	250mm/10 inches	300mm/12 inches	400mm/16 inches
Sealing width	2mm					3mm
Max sealing thickness	0.6mm			0.8mm
Adjustable heating time	0.2-1.5s					0.2-2s
Dimensions (LX W X H)mm	245X95X170	295X95X180	330X100X172	380X102X183	430X102X175	575X105X190
Weight	1.06Kgs	1.24Kgs	1.26Kgs	1.58Kgs	1.68Kgs	2.82Kgs
Package	1 PCS/Color Box
QTY/CTN	20 Pcs		10 Pcs
Carton Size(mm)	490X255X640	525X295X655	510X345X360	535X395X360	525X445X360	590X555X390
G.W/CTN(Kg)	23	25.84	13.38	16.4	17.78	26.5
QTY(sets)/20'GP	7000	5500	4450	3700	3350	2200
QTY(sets)/40'GP	14500	11500	9200	7650	6900	4550
QTY(sets)/40'HQ	17000	13400	10800	8950	8100	5350

Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer Make and Export Table Impulse Sealer Plastic ABS Shell PFS-Series Heat Closing Foil Bag Machine
