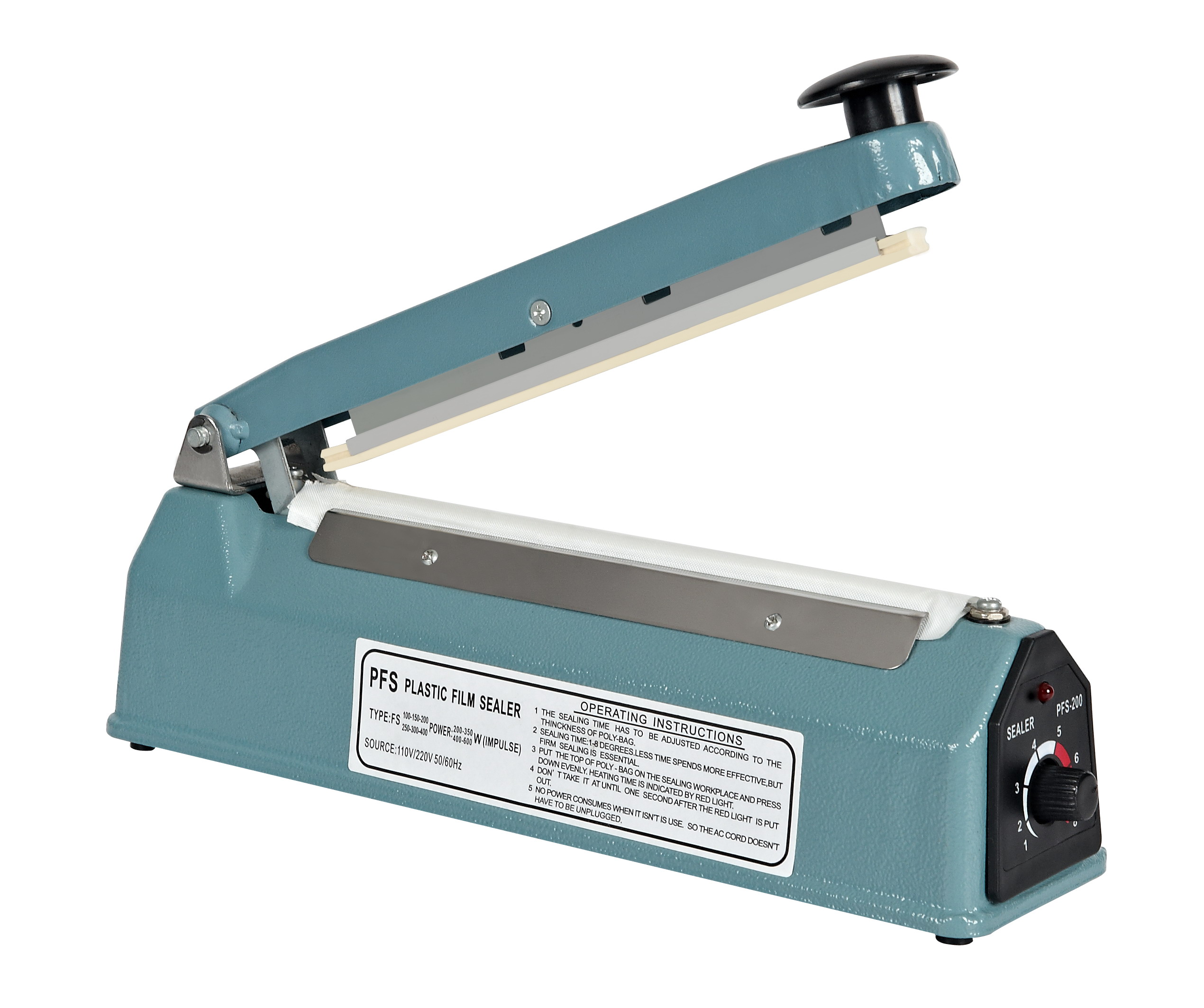

Hand Impulse Heat Sealer Plastic Film Sealing Machine FS-300
Production and Supply Hand Sealing 12"/300 mm/12 inch/30 cm Length Sealing 2 mm Width Impulse Heat Heating Sealer FS-300 Plastic Bag Film Sealing Machine From Zhejiang Tianyu industry Co. Ltd Factory.Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine Is inexpensive and portable machines used to seal Plastic bags, polypropylene (poly bags), bubble bags, PVC, polyester, poly/cello films, humidity-proof cellophane film, aluminum foil bag, PO-film-coated EPE foam bag, kraft paper bag and teabag.Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine are used to seal products such as medical pouches, food and beverage products, gift items, and office supplies.Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine is necessary help in every case, when there is anything to be packed or Pouches / bags to be sealed. With its adjustable timer, it will reach different plastic needs. The desktop machine will be able to produce adequate heat to effectively melt the plastic material on the bag for optimum sealing.Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine is probably the most ubiquitous packaging machines, and are used to seal bags for a great variety of industries and applications. They are affordable and easy to use, which makes them a great alternative for entry-level, light-duty bag sealing applications. The sealing process is simple: The operator places the bag over the sealing element and lowers the upper jaw thus activating the unit. The seal process quickly ends once the preset seal time is reached. The operator retrieves the sealed bag and repeats the process. Bags are sealed repeatedly and uniformly.
Hand Sealing 12"/300 mm/12 inch/30 cm Length Sealing 2 mm Width Impulse Heat Heating Sealer FS-300 Plastic Bag Film Sealing Machine Features:
- Economic,practical,exquisite design,applied to food, medicine, etc.
- Copper transformer,stable quality,durable.
- High quality silicone rubber piece, higher heat resistance, longer service life, ensure better effective sealing.
- Designed to avoid cutting accidents and protect hands.
- Seal plastic bag openings up to 300mm
- 8 timer settings to suit most plastic bags
- Three pin Australian standard electricity plug Watts
- Impulse sealing for power saving
- Precise electronic control circuit
- Pure Copper Transformer & metal base for long life service!
- Easy to use and long lasting
- This durable sealer costs pennies a day to operate, and adjusts easily for thicker bags
- Comes with two couples of heat wire and teflon sheet
- No power is consumed when it isn't used so it doesn't need to be unplugged
- It can seal many types of plastic bags including bubble wraps, cellophane, shrink wraps and thick heavy duty bags etc
- Widely used in factories, shops and service industries
- CE and CCC Certified
- Easy to use and long lasting
- Ready to use instantly No warm up needed
- Portable and compact size,This sealing machine includes the feature of timer knob .You can increase or decrease the heat time using timer knob to avoid any break, damage or non-tighten seal.
- Adjustable timer allows perfect seals for a wide variety of bags thickness
- The operation of the machine is very easy. Just put a plastic bag on the sealing platform , and then push down the handle . After 1-2 second, release the handle .The perfect seal is complete.
- Impulse Manual Bag Sealer Hand Heat Sealing Machine with Optimum Sealing Effects
- A Great Sealer for PE/PP Films/bags, Bubble Wraps Etc. of Different Thicknesses
- Perfect for Household, Warehouse, Supermarket to Pack Candy, Stationery, Drugs Etc.
- Provides Needed Heat to Melt the Bag Material So as to Seal
- Electronic Control Circuit with a Led Indicator for Auto-Heating
- An Adjustable Timer with 8 Options, Meets Various Packaging Needs
- Replaceable Built-In Fuse with Approx. 12"/300 mm/12 inch/30 cm Long Sealing Performance
- Compact and Labor-Saving Design
- Power-Saving Impulse Sealing Technology
- Easy to Handle
- Color: Blue
- Model: FS-300
- Power: 400W
- Weight: 2.24Kg
- Dimensions: 47X10.5X19 cm (L x W x H)
- Weight: 2240 g
- Voltage: 110V,60Hz/220V,50Hz
- Material: Anti-rust Iron-Cast case
- Plug: US Standard
- CE and CCC Certified
- Suitable for: for Kel-F, Mylar, Polyflex, P.V.A., Pliofilm, plastics bags, polythene, bubble wrap, Tivac, Saran and all other heat sealable material bags, ideal for cafe shop, candy store, snack booth, medicine shops,kirana shop, curry point, home, small factories, and industrial sealing.
Hand Sealing 12"/300 mm/12 inch/30 cm Length Sealing 2 mm Width Impulse Heat Heating Sealer FS-300 Plastic Bag Film Sealing Machine Package Includes:
- 1 x FS-300 Hand Sealing 2 mm Width Impulse Heat Heating Sealer Plastic Bag Film Sealing Machine
- 2 x 12"/300 mm/12 inch/30 cm Long gifts Replacement Elements
- 2 x 12"/300 mm/12 inch/30 cm Long giftsTeflon Tapes
- 1x English User Manual
- 1 PCS/Color Box,
- Color box Size:470x105x190 mm
- FS-300 Hand Sealing 2 mm Width Impulse Heat Heating Sealer Plastic Bag Film Sealing Machine Weight: 2.24 Kg
- 10 PCS/CTN
- Carton Size:570x485x385 mm
- G.W/CTN:23.58 Kg
Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine User instructions:
1. Plug the power cord into an AC outlet and adjust the timer according to thickness of the material to be sealed. Use a high-number for thicker material.
2. Important! In order to enhance the quality of the sealing, perform the resistance pre-heating. Press the sealer arm twice simulating the sealing without a package. This procedure may be performed only once before starting the sealing procedure itself but it should be repeated every time the equipment goes idle for longer than 1 minute.
3. Place the envelope on the sealing platform always with the paper side down (directly on the resistance) and the plastic side up and press the sealer arm down firmly. The heating time is controlled automatically after manual adjustment.
4. When the red LED goes off the sealing will be completed. Slide the blade to cut the envelope, raise the sealer arm and remove the package.
1. Plug the power cord into an AC outlet and adjust the timer according to thickness of the material to be sealed. Use a high-number for thicker material.
2. Important! In order to enhance the quality of the sealing, perform the resistance pre-heating. Press the sealer arm twice simulating the sealing without a package. This procedure may be performed only once before starting the sealing procedure itself but it should be repeated every time the equipment goes idle for longer than 1 minute.
3. Place the envelope on the sealing platform always with the paper side down (directly on the resistance) and the plastic side up and press the sealer arm down firmly. The heating time is controlled automatically after manual adjustment.
4. When the red LED goes off the sealing will be completed. Slide the blade to cut the envelope, raise the sealer arm and remove the package.
Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine Attention:
a) In order to make the sealing better, wait for 1 or 2 seconds to release the sealer arm after the red LED goes off.
b) If the heating time is too long or insufficient the sealing might be inefficient (the envelope may be stuck to the sealing area when it is pulled or be visibly badly-sealed).
c) To correct this, adjust the timer properly.
d) Once adjusted it is not necessary to perform any other adjustment to continue sealing.
b) If the heating time is too long or insufficient the sealing might be inefficient (the envelope may be stuck to the sealing area when it is pulled or be visibly badly-sealed).
c) To correct this, adjust the timer properly.
d) Once adjusted it is not necessary to perform any other adjustment to continue sealing.
Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine Notes:
1. Keep the sealing platform always clean. The accumulation of waste on the sealing area will reduce the life cycle of the resistance and the insulating material. For an effective cleaning, wait for the sealing area to cool down and use a cloth slightly moistened with alcohol.
2. If the insulating material lower tape is worn the sealer may go faulty and the resistance may be damaged. Being so, every time the resistance is replaced, please also check the insulating material tape and replace it if it is worn.
3. If it is necessary to replace the resistance or the fuse, use only those which have the same specifications as the genuine parts’.
4. While packing the instruments protect the ones which have cutting and piercing tips with cotton or gauze to avoid the packages rupture.
5. Place the sealed envelopes with instruments into the autoclave. Check the instructions from the manufacturer of your autoclave regarding the arrangement of the packages and the sterilization cycle.
6. Replace the balde after cutting around 800 times. Use pliers to take out the obtuse one, replace the new blade.
7. Replace heat-resisting fabric after sealing about 500 times or inefficient seal. Extract the silicon tube, peel off the heat-resisting fabric, replace the new one, and inset the silicon tube at original position.
Hand Sealing 2 mm Width Impulse Heat Heating Sealer FS Series Plastic Bag Film Sealing Machine Specifications:
| Model No. | FS-200 | FS-300 | FS-400 |
| Voltage | AC220V/50HZ 110V/60HZ | AC220V/50HZ 110V/60HZ | AC220V/50HZ 110V/60HZ |
| Impulse power | 300W | 400W | 600W |
| Max sealing length | 8"/200 mm/8 inch/20 cm | 12"/300 mm/12 inch/30 cm | 16"/400 mm/16 inch/40 cm |
| Max sealing width | 2mm | 2mm | 3mm |
| Max sealing thickness | 0.6mm | 0.8mm | 0.8mm |
| Adjustable heating time | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
| Dimensions (L x W x H) mm | 333X100X173 | 470X105X190 | 575X105X195 |
| Weight | 1.98KGS | 2.24KGS | 3.26KGS |
| QTY/CTN | 10PCS | 10PCS | 10PCS |
| Carton Size(mm) | 535X345X360 | 570X485X385 | 590X570X390 |
| G.W/CTN(Kg) | 18.6 | 23.58 | 32.6 |
