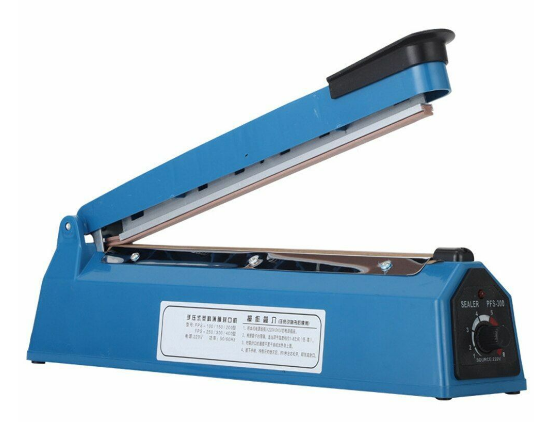

Impulse Sealers Plastic Bag Packing Sealing Machines PFS-400

Impulse Sealers Plastic Bag Packing Sealing Machines PFS-400

Make and Export Impulse Sealers PFS-400 Hand 400mm / 16 Inches / 40cm Wide Plastic Bag Heat Packing Sealing Machines From Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Impulse Sealers Plastic ABS Body PFS-Series Hand Plastic Bag Heat Packing Sealing Machines are Great Sealer for PE/PP Films, Bags, Bubble Wraps Etc. of Different Thicknesses Perfect for Household, Warehouse, Supermarket to Pack Candy, Stationery, Drugs Etc. Provides Needed Heat to Melt The Bag Material So as to Seal Electronic Control Circuit with a Led Indicator for Auto-Heating an Adjustable Timer with 8 Options, Meets Various Packaging Needs Tough Abs Shell with Blue Finish Replaceable Built-In Fuse with Approx.This Lightweight Heat Sealing Hand Sealer Machine Poly Free Element Plastic Sealer featuring 8 stalls temperature adjustment impulse manual hand bag sealer to meet any different materials bags. No warm up time needed, high quality electric heating wire and high temperature resistant cloth enable to heat your poly bags seals better. Upgrade Pure copper transformer make sure this tabletop heat sealer working life is double longer than normal sealing machines. Built-in fuse for safe using, easy to use and to clean, ideal for household, retail, produce, grocery stores, and industrial sealing with a certain quality superiority. Note: When seal is done, the red light will go off. Keep the handle pressed down for 2-3 seconds to get seals optimal results. Do not use wet cloth to clean the surface of heat sealing strip.


Impulse Sealers PFS-400 Hand 400mm / 16 Inches / 40cm Wide Plastic Bag Heat Packing Sealing Machines Features:


Color:Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heat Time: 0.2 -2.0s
Can Make OEM Products
Suitable for PE/PP bags and so on.
Light weight, easy to use it
Strong power but don't waste electricity
Heat time is short
It is made of plastic material
More accurate with precision electronic control
Avoid the loss of product



Impulse Sealers PFS-400 Hand 400mm / 16 Inches / 40cm Wide Plastic Bag Heat Packing Sealing Machines Specification:


Model: PFS-400
Color :Light Blue,Green,White or Red
Maximum sealing length: 400mm / 16 inches / 40cm
Maximum bag sealing thickness: 0.4mm X 2
Sealing Width 3mm
Heating time: 0.2-2.0 s
Film thickness: PE 0.06-0.2mm / PP 0.03-0.8mm
Voltage: EU Plug, AC220V50HZ or AC110V/60HZ
Pulse power: 600 W
Welding time: infinitely adjustable
Size: 57.5X10.5X19CM
Item Weight: 2.82 Kg
Material: ABS plastic
SAA approval plug: US plug/EU plug/UK plug/AU plug
CE Certified

These machines are used to seal Sachets Pillow-type bags Pouches Dog bags Gusseted bags Suitable for sealing thermo sealable materials such as Cellophane Poly-Ethylene (LDPE & HDPE) Poly-Propylene (PP & BOPP) Poly-Vinyl chloride (PVC) Poly-Olefins (POF).

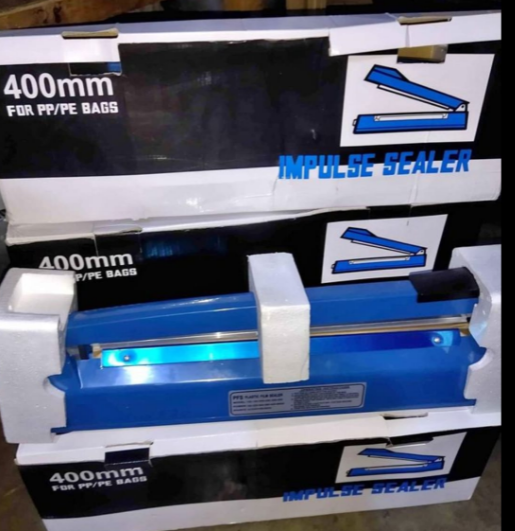

Impulse Sealers PFS-400 Hand 400mm / 16 Inches / 40cm Wide Plastic Bag Heat Packing Sealing Machines Package List:


1 X PFS-400 Impulse Sealer
2 X 16 Inches Spare Heat-resistant Strip
2 X 16 Inchea Spare Heating Wire
1 X English User Manual
PFS-400 Impulse Sealer Weight: 2.82 Kg
Color Box Size:575X105X190mm
1 PCS/Color Box
10 PCS/CTN
Carton Size:590X555X390mm
G.W/CTN:26.5Kg


How to Use Impulse Sealers Plastic ABS Body PFS-Series Hand Plastic Bag Heat Packing Sealing Machines:


1.  No power switch required (auto-control), link  the  AC  power  cord  with  socket,  adjust  heating  time  just  according  to  the  thickness  of  sealing-in  material;  put  the  plastic  bag  on  the  sealing-in  surface  and  press  the  handle,  the  circuit  will  automatically  control  heating  time.  The  power  will  automatically  shut  down  when  the  indicator  light  goes  out.  After  1-2  seconds,  release  the  handle  to  finish  sealing.
2.  Any  damage  occurs  during  sealing  is  because  of  over-long  heating  time,  please  spin  the  rotary  knob  anticlockwise  to  shorten  heating  time.
3.  Too-short  heating  time  will  cause  unstable  sealing.  Please  spin  the  rotary  knob  clockwise  to  lengthen  heating  time
4.  If  the  plastic  bag  sticks  to  rubber  pressing  board,  it  means  the  cooling  time  is  insufficient.  You  must  lengthen  the  cooling  time  after  indicator  light  extinguishment.  Slightly  late  to  release  the  handle
5.  Remain  the  heating  time  unchanged  after  adjustment,  and  no  need  to  adjust  it  during  continuous  service.
6.  Keep  AC  power  cord  always  inserting  on  the  socket,  no  electricity  consumption  when  there  is  no  sealing.



HS CODE:8422303090
Impulse Sealers Plastic ABS Body PFS-Series Hand Plastic Bag Heat Packing Sealing Machines Specification:




Zhejiang Tianyu Industry Co., Ltd Supplier Factory Manufacturer Make and Export Impulse Sealers Plastic ABS Body PFS-Series Hand Plastic Bag Heat Packing Sealing Machines Specification
Model  PFS-100 PFS-150 PFS-200 PFS-250 PFS-300 PFS-400
Impulse voltage AC220V/50HZ or AC110V/60HZ
Impulse power 150W 220W 300W 350W 400W 600W
Max. sealing length 100mm/4 inches/10cm 150mm/15cm/6 inches 200mm/8 inches/20cm 250mm/10 inches/25cm 300mm/12 inches/30cm 400mm/16 inches/40cm
Sealing width 2mm 2mm 2mm 2mm 2mm 3mm
Max sealing thickness 0.6mm 0.6mm 0.6mm 0.8mm 0.8mm 0.8mm
Adjustable heating time 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-1.5 S 0.2-2 S
Dimensions (LX W X H)mm 245X95X170 295X95X180 330X100X172 380X102X183 430X102X175 575X105X190
Weight 1.06KGS 1.24KGS 1.26KGS 1.58KGS 1.68KGS 2.82KGS
Package 1 PCS/Color Box
QTY/CTN 20 PCS 20 PCS 10 PCS 10 PCS 10 PCS 10 PCS
Carton Size(mm) 490X255X640 525X295X655 510X345X360 535X395X360 525X445X360 590X555X390
G.W/CTN(Kg) 23 25.84 13.38 16.4 17.78 26.5
QTY(sets)/20'GP 7000 5500 4450 3700 3350 2200
QTY(sets)/40'GP 14500 11500 9200 7650 6900 4550
QTY(sets)/40'HQ 17000 13400 10800 8950 8100 5350
