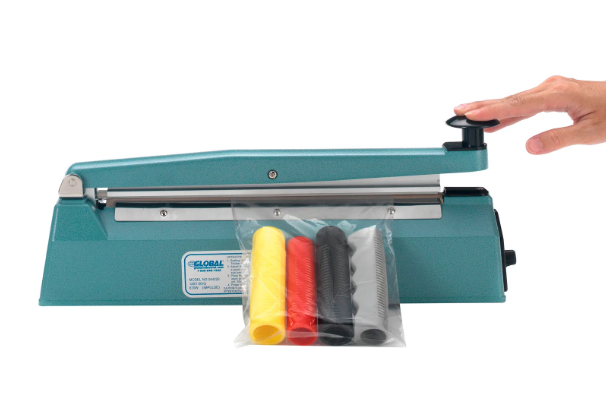

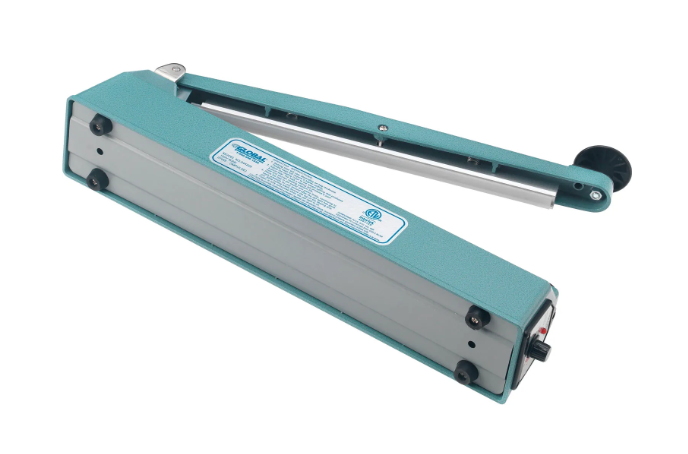

Hand Impulse Plastic Bag Film Heating Sealer Machine PFS-100
Make and Export Hand Operated Impulse Plastic Bag Film Heating Sealer PFS-100 Manual 100mm / 4 inches / 10cm Wide Sealing Machine From Zhejiang Tianyu Industry Co., Ltd. Supplier Factory Manufacturer In China.Hand Operated Impulse Plastic Bag Film Heating Sealer ABS Plastic Body PFS-Series Manual Sealing Machine is one of the most common types of heat sealers. This heat sealer has one heating element which is covered by a layer of PTFE or Teflon fabric type material which prevents the bag sticking to the sealer. The heating element is not continuously heated; heat is only generated only when the jaws are closed and current flows. When the bag is placed in the impulse heat sealer, the jaws are closed and pressure maintained for the time of the seal (while the light is on). Then pressure is held for about 2 seconds to allow the seal to cool.The heating element is not continuously heated; heat is only generated only when the jaw is closed and current flows. When the bag is placed in the impulse heat sealer, the jaw is closed and pressure maintained for the time of the seal (while the light is on). Then pressure is held for about 2 seconds to allow the seal to cool. This means that ther is no heat up time and no power is consumed when the impulse heat sealer is not in use.
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Can Make OEM Products
ABS Plastic Body for greater life and usage
Usable for sealing with PP, PE, Nylon, Bags, Plastic Bags
Light-weight, easy to use it.
Strong power but don't waste electricity
More accurate with precision electronic control
Simple to use - No operator training
Impulse Sealing System
Heat time is short
Seals Uniformily - Every Time
No Warm-up time is necessary
Timer Knob for adjustment of sealing thickness material
Hand Operated Impulse Plastic Bag Film Heating Sealer PFS-100 Manual 100mm / 4 inches / 10cm Wide Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Hand Operated Impulse Plastic Bag Film Heating Sealer PFS-100 Manual 100mm / 4 inches / 10cm Wide Sealing Machine Features:
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE, max 4 Mil for PP)
Heat Time: 0.2 -1.5s
Can Make OEM Products
ABS Plastic Body for greater life and usage
Usable for sealing with PP, PE, Nylon, Bags, Plastic Bags
Light-weight, easy to use it.
Strong power but don't waste electricity
More accurate with precision electronic control
Simple to use - No operator training
Impulse Sealing System
Heat time is short
Seals Uniformily - Every Time
No Warm-up time is necessary
Timer Knob for adjustment of sealing thickness material
Hand Operated Impulse Plastic Bag Film Heating Sealer PFS-100 Manual 100mm / 4 inches / 10cm Wide Sealing Machine Specification:
Model: PFS-100
Color: Blue,Blue,White or Red
Max Sealing Length:100mm / 4 inches / 10cm
Width for seal: 2mm
Max thickness for seal: 0.6mm (Max 6 Mil for PE,Max 4 Mil For PP)
Heat Time: 0.2 -1.5s
Source: AC110V/60Hz or AC220V/50Hz
Power: 150W
Material: ABS Plastic Shell
Plug Type: EU Plug or AU Plug
Dimensions: 245 X 95 X 170mm (L X W X H)
Hand Operated Impulse Plastic Bag Film Heating Sealer ABS Plastic Body PFS-Series Manual Sealing Machine is Suitable for PE/PP bags. Light-weight, easy to use it. Strong power but don't waste electricity. Heat time is short. More accurate with precision electronic control.
Hand Operated Impulse Plastic Bag Film Heating Sealer PFS-100 Manual 100mm / 4 inches / 10cm Wide Sealing Machine Package list:
1 X PFS-100 Impulse Plastic Bag Sealer
2 X 4 Inches Long Sealing Wires
2 X 4 Inches Long High Temperature Clothes
1 X English User Manual
PFS-100 Impulse Plastic Bag Sealer Weight:1.06 Kg
1 X Color Box
1 PCS/Color Box
Color Box Size:245X95X170mm
20 PCS/CTN
Carton Size:490X255X640mm
G.W/CTN:23Kg
HS CODE:8422303090
Hand Operated Impulse Plastic Bag Film Heating Sealer ABS Plastic Body PFS-Series Manual Sealing Machine Specification:
Hand Operated Impulse Plastic Bag Film Heating Sealer ABS Plastic Body PFS-Series Manual Sealing Machine Specification:
Model | PFS-100 | PFS-150 | PFS -200 | PFS -250 | PFS-300 | PFS-400 |
Impulse power | 150W | 220W | 300W | 350W | 400W | 600W |
Impulse voltage | AC220V/50HZ or AC110V/60HZ | |||||
Max sealing length | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm |
Max sealing thickness | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm | 0.3mm |
Max sealing width | 2mm | 2mm | 2mm | 2mm | 2mm | 3mm |
Heating time | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-1.5S | 0.2-2S |
Dimensions (L x W x H) Cm | 24.5X9.5X17 | 29.5X9.5X18 | 33X10X17.2 | 38X10.2X18.3 | 43X10.2X17.5 | 57.5X10.5X19 |
Weight | 1.06KGS | 1.24KGS | 1.26KGS | 1.58KGS | 1.68KGS | 2.82KGS |
Package | 1 Pcs/Color Box | |||||
QTY/CTN | 20PCS | 20PCS | 10PCS | 10PCS | 10PCS | 10PCS |
Carton Size(cm) | 49X25.5X64 | 52.5X29.5X65.5 | 51X34.5X36 | 53.5X39.5X36 | 52.5X44.5X36 | 59X55.5X39 |
G.W/CTN(Kg) | 23 | 25.84 | 13.38 | 16.4 | 17.78 | 26.5 |
QTY(sets)/20'GP | 7000 | 5500 | 4450 | 3700 | 3350 | 2200 |
QTY(sets)/40'GP | 14500 | 11500 | 9200 | 7650 | 6900 | 4550 |
QTY(sets)/40'HQ | 17000 | 13400 | 10800 | 8950 | 8100 | 5350 |
